Product data sheet

LED Floodlight-EQII 30W-3000-GY-GP

709000017210

Opple

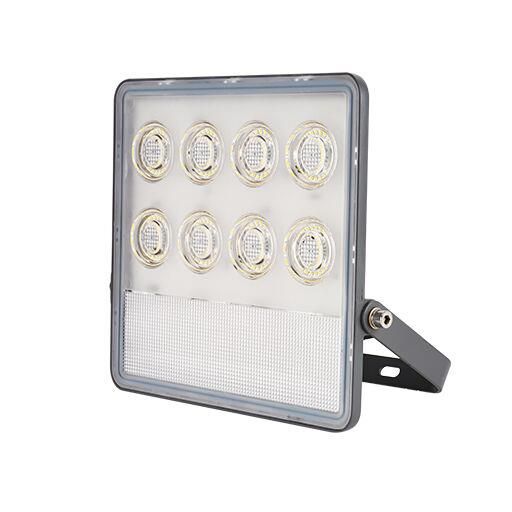

Product image 1: LED Floodlight-EQII 30W-3000-GY-GP
Product image 1: LED Floodlight-EQII 30W-3000-GY-GP

Product image 1: LED Floodlight-EQII 30W-3000-GY-GP



IP
66

IK
06

Housing: Die-cast Aluminum; Mounting ring: Grey; Installation: Bracket/ Pole; Dimensions: 155*175*36mm; Ceiling cutouts: /; Beam angle: 80°; Lamp(s): LED; Power: 30W; Efficacy：95Lm/w Total luminous flux of luminaire: 2850lm; Power Factor: 0.95 Mains voltage: AC220-240V/50-60Hz; Colour temperature: 3000K; Colour rendering: Ra80; UGR: / IP/IK Grade: IP66/ IK06; Class of protection I; Control System: / Service life: 25,000h at 70% luminous flux;

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 30 W 2700 lm 90 lm/W 3000 K 80
LED Floodlight-EQII 30W-3000-GY-GP

LED Floodlight-EQII 30W-3000-GY-GP

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 155 mm

Width: 175 mm

Height: 36 mm

Adjustability

Free

Electric

System power: 30 W

Protection

IP: 66

IK: 06

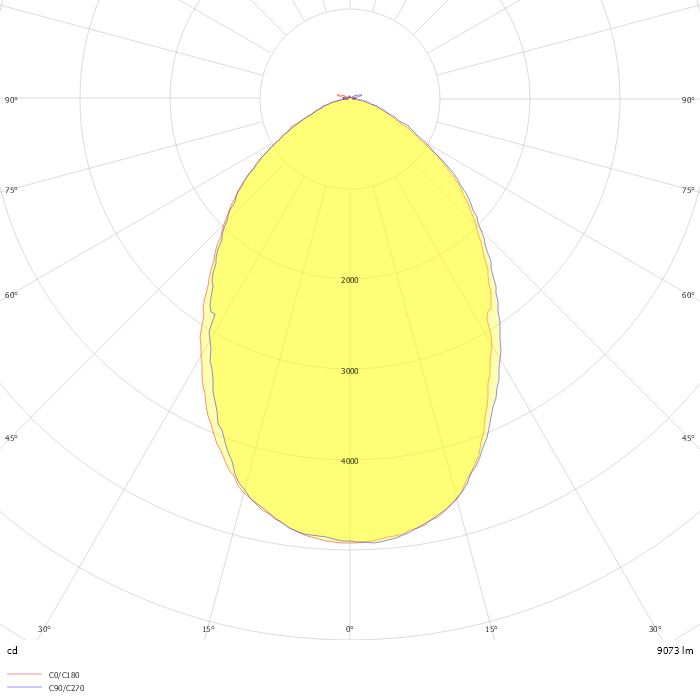

Photometric data

ZIP file

Download file
