Product data sheet

Level Quick ISO Black Tune

7474628

Hide-a-lite

Effective and low-build for installation in 28mm secondary spaced boarding with 13mm plasterboard, approved for installation directly against insulation. An easily installed tiltable luminaire with a modern expression. Lens technology and recessed light source giving a discrete and glare free light with very good colour rendering, Ra>95. IP44 rated for installation both indoors and outdoors. Mains dimmable driver, 3-pole push-in terminal for through wiring and screwless strain relief for cable or flex hose 16 mm. Dimmable with most common dimmers on the market.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 5.5 W 336 lm 61 lm/W 2700 K 80
Level Quick ISO Black Tune

Level Quick ISO Black Tune

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 40 mm

Diameter: 95 mm

Adjustability

Tiltable

Design

Colour of housing: Black

Electric

System power: 5.5 W

Appliance Class: II

Protection

IP: 44

Designation labels: CE

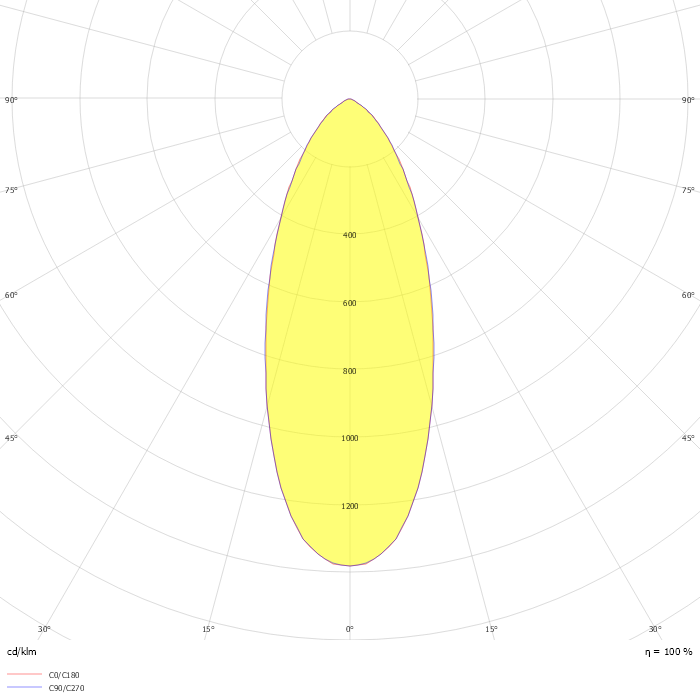

Photometric data

ZIP file
