Product data sheet

M52 - SPY FOCUS MP 930 MDL

24426 9300

Delta Light

Product image 1: M52 - SPY FOCUS MP 930 MDL
Product image 1: M52 - SPY FOCUS MP 930 MDL

Product image 1: M52 - SPY FOCUS MP 930 MDL



IP
20

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named M52 - SPY FOCUS MP 930 MDL, available in the colour(s): black, flemish bronze, flemish gold, white. This luminaire can be used with the following 48V magnetic lighting system(s): SPLITLINE M52 - PROFILE. This luminaire is equipped with LED array 17,2W / CRI>90 (R9: 52) / 3000K / 2101lm with build-in converter to operate on a voltage of 48V-DC. Dimming protocol: MDL = 1-10V or DALI or push button. Light distributor: lens 12-45°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 17 W 2101 lm 124 lm/W 3000 K 90
1 x LED 17 W 2101 lm 124 lm/W 3000 K 90
1 x LED 17 W 2101 lm 124 lm/W 3000 K 90
M52 - SPY FOCUS MP 930 MDL

M52 - SPY FOCUS MP 930 MDL

Light output 1

1 x LED

M52 - SPY FOCUS MP 930 MDL

M52 - SPY FOCUS MP 930 MDL

Light output 1

1 x LED

M52 - SPY FOCUS MP 930 MDL

M52 - SPY FOCUS MP 930 MDL

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Contact rail, Wall recessed

Shape and measurements

Length: 52 mm

Width: 170 mm

Height: 1 mm

Electric

System power: 21 W

Appliance Class: II

Protection

IP: 20

Designation labels: CE

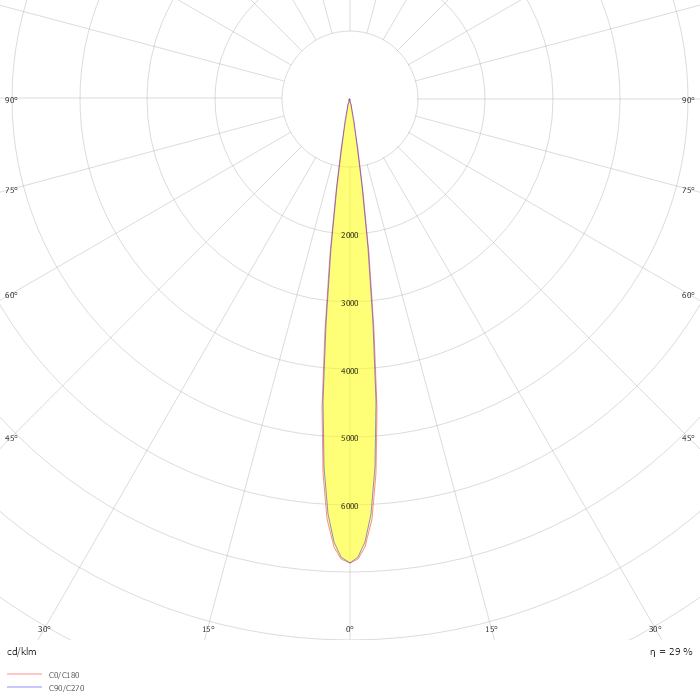

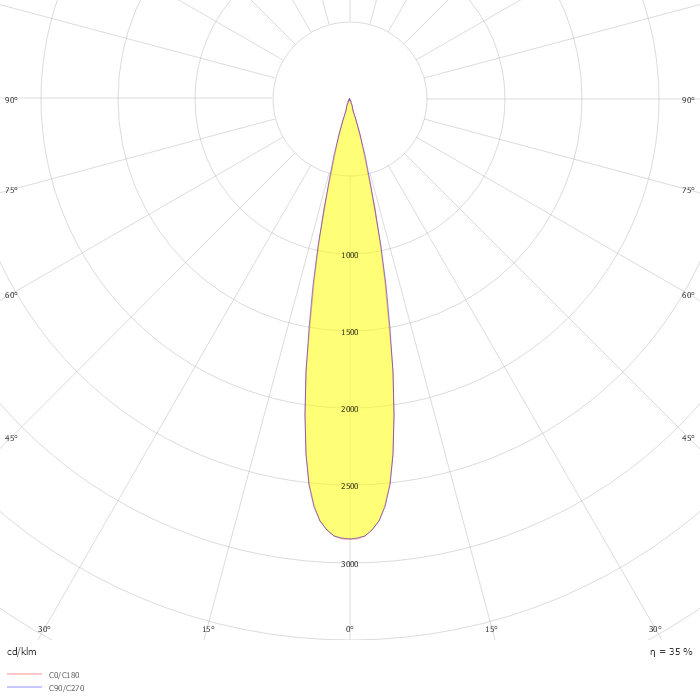

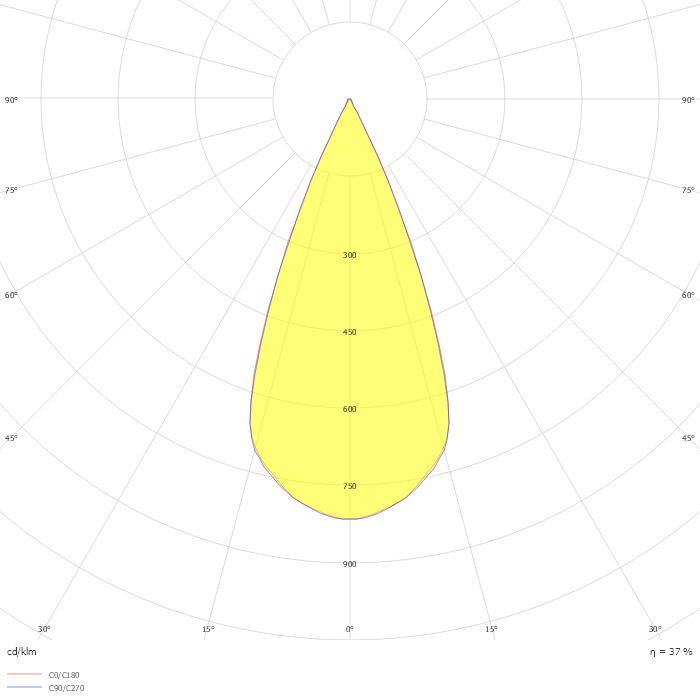

Photometric data

ZIP file

Download file
