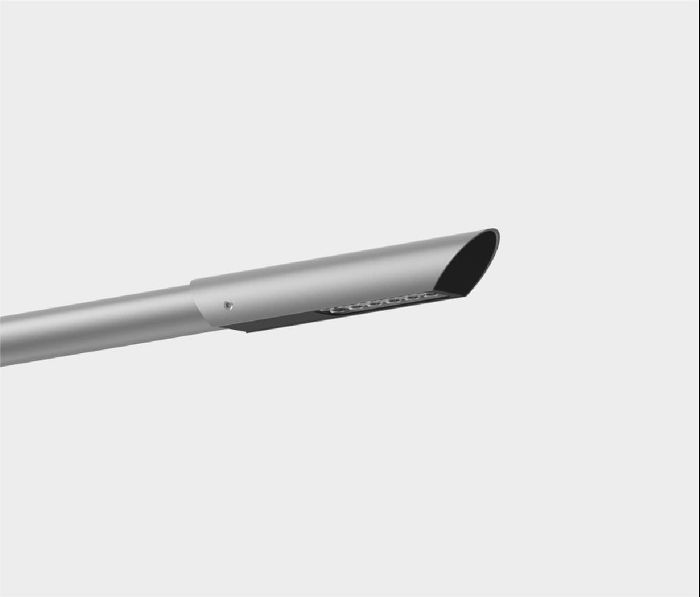

Programmable version of the ISKRA LED luminaire. It is used, among others, on urban roads, residential streets, bicycle paths, pedestrian routes and in parks. Made of aluminium alloy – in standard version anodised in inox and black. Luminaire is mounted on an extension arm with a ⌀ 60 x 90 mm ending. It has a protection class of IP 66 for the optical part and the power input system. The operating temperature range is from -40°C to +55°C. The expected service life is L90B10 - 100,000 h. The input voltage frequency is 50/60Hz. Power factor ≥0.95. Equipped with 12 LEDs. It is possible to connect the luminaire to an external control system via the DALI interface (optional support for an analogue 1-10V signal).
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LED | 40 W | 5550 lm | 139 lm/W | 2700 K | 70 |
Mounting mode
Pole top mounted
Shape and measurements
Length: 406 mm
Width: 92 mm
Height: 66 mm
Adjustability
Fixed
Electric
System power: 40 W
Protection
IP: 66
Photometric data
ZIP file
