Product data sheet
iMAX II ROUND ADJUSTABLE LP 93012
24210 9310
Delta Light
Luminaire, ceiling recessed (indoor use) from Deltalight, named iMAX II ROUND ADJUSTABLE LP 93012, available in the colour(s): black, white. For recessed mounting, a round opening with a diameter of 98 mm is needed and a min. depth for recessing of 125 mm. This luminaire is equipped with LED array 5,8-8,6W / CRI>90 (R9: 52) / 3000K / 734-1018lm with an optional driver, suitable for currents of 350mA to 500mA. Light distributor: lens 12°.
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 8 W | 925 lm | 116 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1018 lm | 113 lm/W | 3000 K | 90 |
| 1 x LED | 8 W | 925 lm | 116 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 734 lm | 122 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1018 lm | 113 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 734 lm | 122 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 734 lm | 122 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1018 lm | 113 lm/W | 3000 K | 90 |
| 1 x LED | 8 W | 925 lm | 116 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1018 lm | 113 lm/W | 3000 K | 90 |
| 1 x LED | 8 W | 925 lm | 116 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 734 lm | 122 lm/W | 3000 K | 90 |
| 1 x LED | 9 W | 1018 lm | 113 lm/W | 3000 K | 90 |
| 1 x LED | 8 W | 925 lm | 116 lm/W | 3000 K | 90 |
| 1 x LED | 6 W | 734 lm | 122 lm/W | 3000 K | 90 |
Mounting mode
Ceiling recessed
Shape and measurements
Height: 2 mm
Diameter: 106 mm
Weight: 0.4 kg
Electric
System power: 6-9 W
Appliance Class: II
Protection
IP: 54
Designation labels: CE

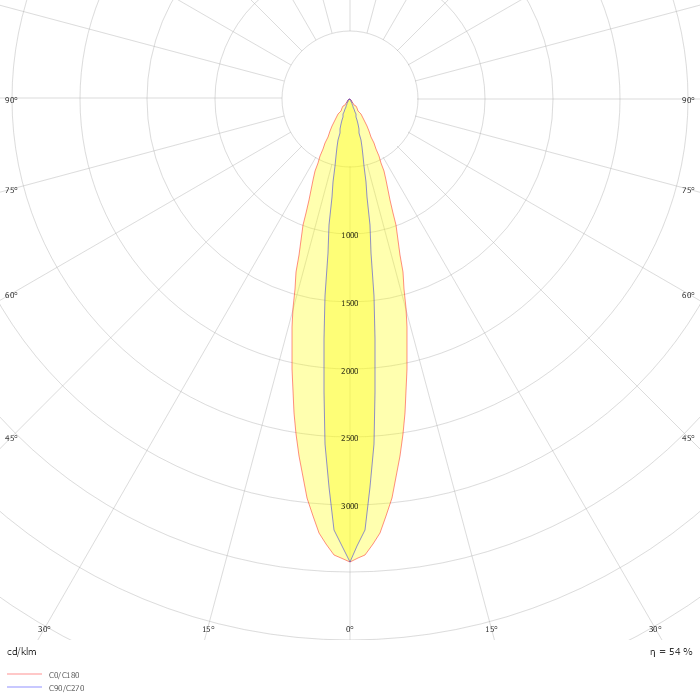

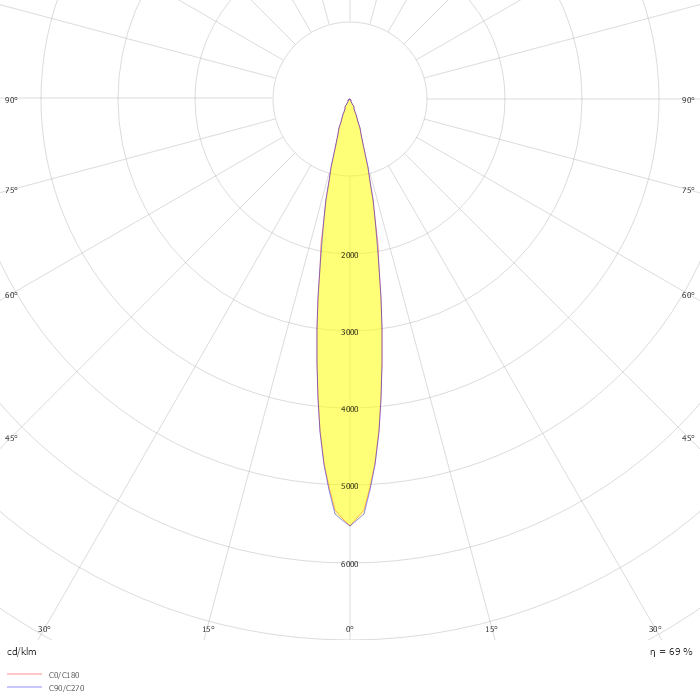

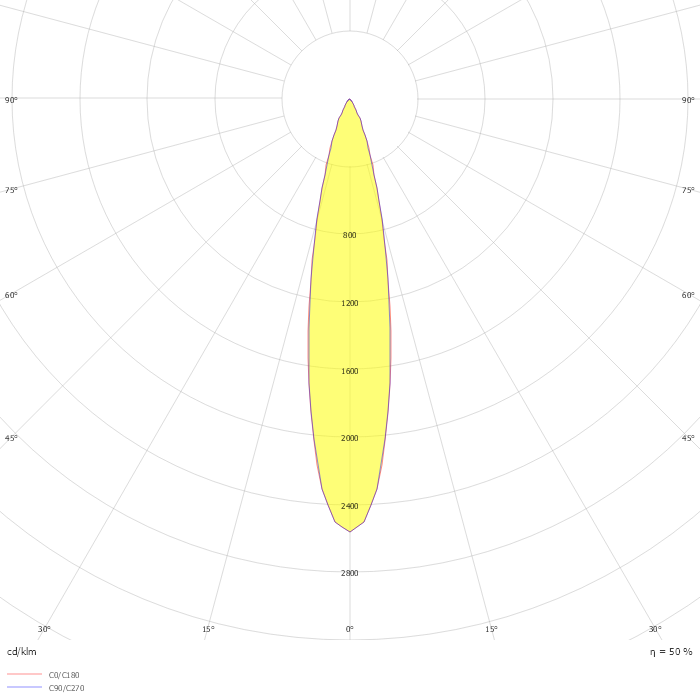

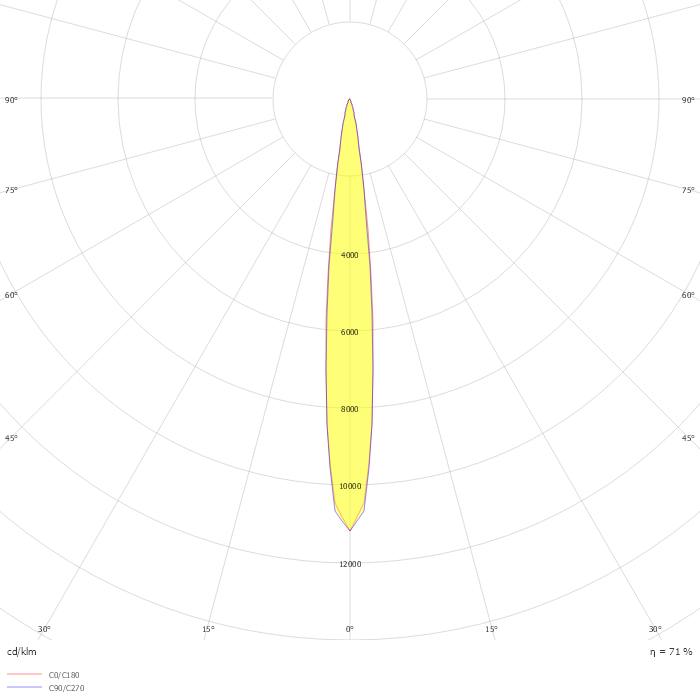

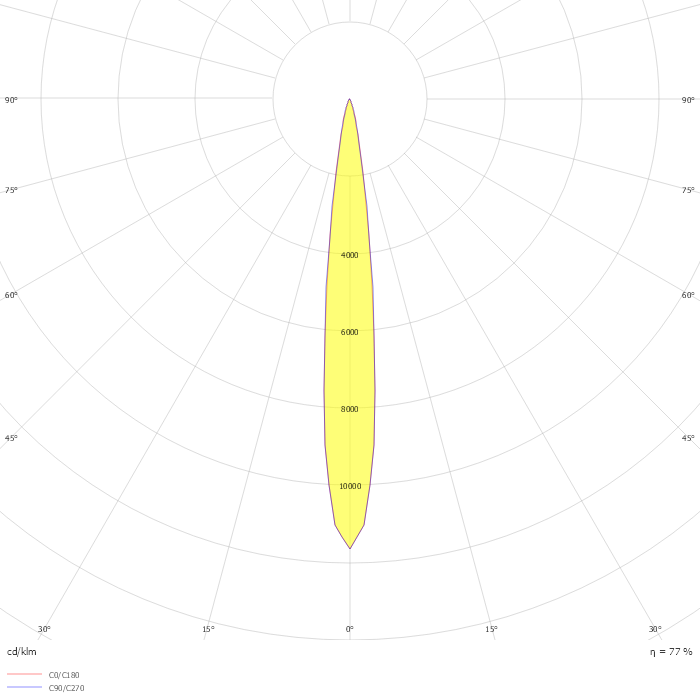

Photometric data
ZIP file
