Product data sheet

Circulus Maxi Pendant White 3060lm 3000K Ra>80 DALI

214025

SG Armaturen

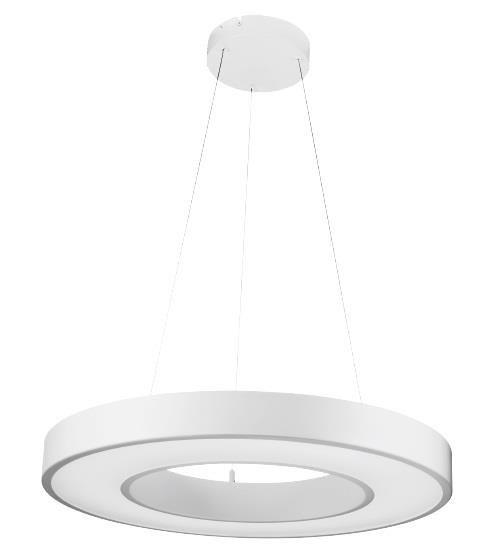

Circulus Maxi Pendant is a round pendant luminaire with a minimalistic design, giving a beautiful, even light. The luminaire is produced in a powder-coated matt black or white steel, and can be dimmed using a DALI or phase control dimmer. We recommend LEDDim 400 and LEDDim Smart. Ability to mount at different heights by means of the three adjustable wires. The pendant is easily fitted with a bracket that can be screwed directly into all known ceiling boxes. Visible cabling also possible. Light distribution Direct Light technic LED (not exchangeable) 30W 3000K Ra>80 SDCM 3 L70/B10 >100,000 hrs at Ta=25°C Control/Dimming DALI Protection Class I IP20 Energy and approvals A++ CE Materials and finish Housing: Steel Colour: White (RAL 9003) Optics: PMMA Polymethylmethacrylat Mounting/Connection Suspended, Indoor Screwless terminal block

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 30 W 3060 lm 102 lm/W 3000 K 80
Circulus Maxi Pendant White 3060lm 3000K Ra>80 DALI

Circulus Maxi Pendant White 3060lm 3000K Ra>80 DALI

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 551 mm

Width: 551 mm

Height: 55 mm

Adjustability

Height adjustable

Design

Colour of housing: White

Electric

System power: 30 W

Appliance Class: I

Protection

IP: 20

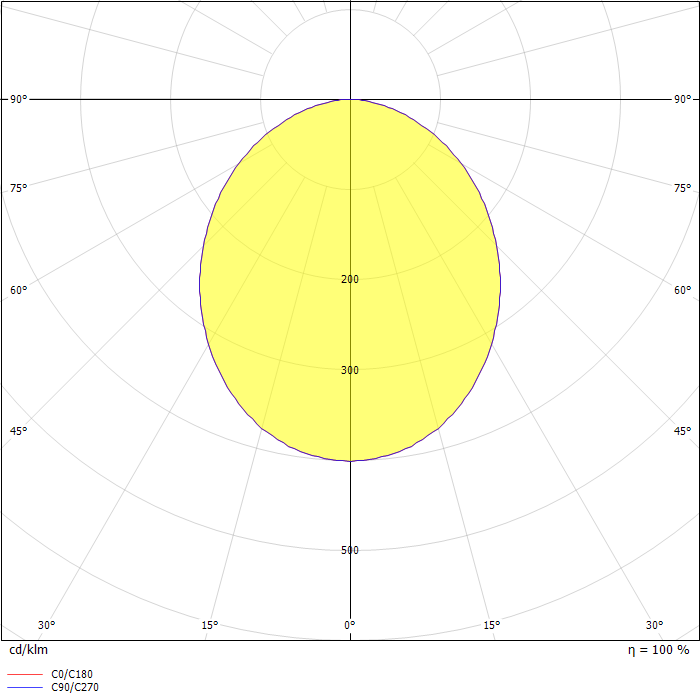

Photometric data

ZIP file
