Product data sheet

ZET5 Round Adjustable - CV

9013-A-2-585-91

Unilamp

The ZET family of inground luminaires is available in a wide range of configurations depending on project specific requirements. Options include high power LED, COB LED, lamp based light sources and fixed or adjustable luminaire models. ZET is manufactured from an advanced LM6+ aluminum alloy and coated with the UniShield16 process. This ensures a long lasting and beautiful looking luminaire. Glare control and a wide range of electrical accessories are available. ZET is available with constant voltage supply (CV) or constant current supply (CC). ZET is commonly used to highlight architectural features, wall structures, low ceilings and columns.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 8.1 W 1030 lm 127 lm/W 4000 K 80
ZET5 Round Adjustable - CV

ZET5 Round Adjustable - CV

Light output 1

1 x LED

Mounting mode

Floor recessed

Shape and measurements

Length: 129 mm

Width: 129 mm

Height: 174 mm

Adjustability

Fixed

Electric

System power: 8.1 W

Appliance Class: I

Protection

IP: 67

IK: 10

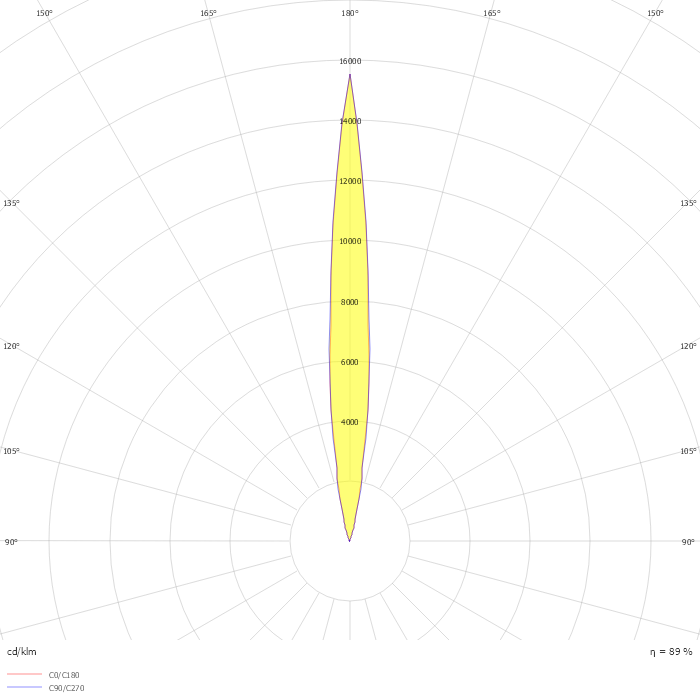

Photometric data

ZIP file
