Your products (0)

Product data sheet

StreetSense LED Street Light 10900 Lumens, Type III Distribution, Tempered Glass Lens

SLA3N4HG

Dialight

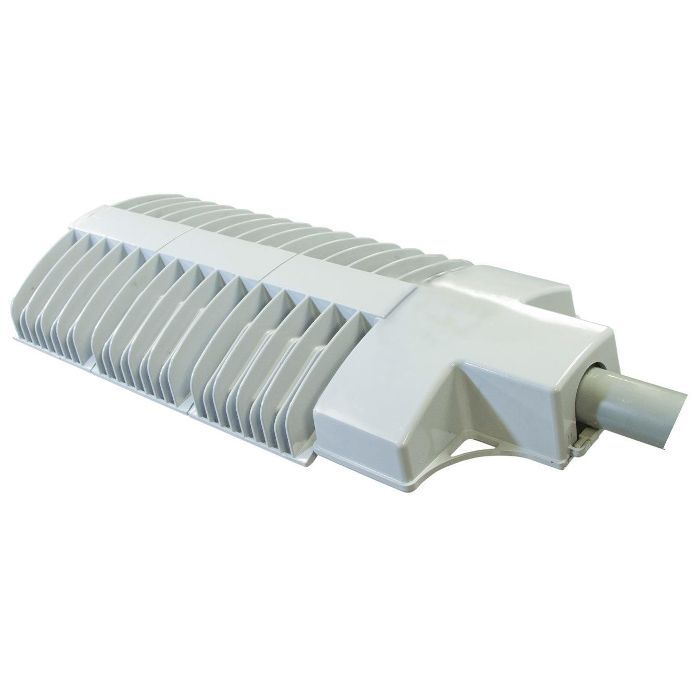

Product image 1: StreetSense LED Street Light 10900 Lumens, Type III Distribution, Tempered Glass Lens
Product image 1: StreetSense LED Street Light 10900 Lumens, Type III Distribution, Tempered Glass Lens

Product image 1: StreetSense LED Street Light 10900 Lumens, Type III Distribution, Tempered Glass Lens



IP
66

IK
07

StreetSense LED Street Light 10,900 Lumens 131 Watts 100-277V AC Neutral White, 70CRI Tempered Glass Lens ATEX / IECEx Zone 2 CSA C22.2 No. 250.0-08 CE UL 1598 (suitable for wet locations) IES Type III Distribution IP65 (a cable gland with a minimum ingress protection rating of IP54 is required to maintain certification) LM79 Tested IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 130.7 W 10917 lm 84 lm/W 3783 K 70
StreetSense LED Street Light 10900 Lumens, Type III Distribution, Tempered Glass Lens

StreetSense LED Street Light 10900 Lumens, Type III Distribution, Tempered Glass Lens

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted, Pendant

Shape and measurements

Length: 372 mm

Width: 674 mm

Height: 122 mm

Weight: 11.34 kg

Adjustability

Rotatable, Tiltable

Electric

System power: 130.7 W

Appliance Class: I

Protection

IP: 66

IK: 07

Explosion zone suitability: 2

Photometric data

ZIP file

Download file
