Product data sheet

Damp-proof diffuser luminaire Splash Essential 30W 4000lm C

2008.6355 - SPLASH ESS 1272 LED4000-840 WB ONF

Regent

Product image 1: Damp-proof diffuser luminaire Splash Essential 30W 4000lm C
Product image 1: Damp-proof diffuser luminaire Splash Essential 30W 4000lm C

Product image 1: Damp-proof diffuser luminaire Splash Essential 30W 4000lm C



IP
66

IK
10

Damp-proof diffuser luminaire Splash Essential for surface, wall, pendant mounting and mounting rail, with LED, system power: 30 W, luminous flux of luminaire 4000 lm, colour rendering index CRI > 80, colour temperature 4000 K, neutral white, colour tolerances SDCM 3, lifetime LED L90 50'000 h, photobiological safety: the luminaire poses no danger (RG0), 230 V, direct light emission, wide beam, 1 integral control gear, ON/OFF, housing in polycarbonate (PC) light grey and diffusor in polycarbonate (PC), opal, with chrome steel clamps, protection class I, ingress protection IP66, glow wire test 850 °C, impact strength: IK 10, for ambient temperatures -25 to +40 °C, this product contains a light source of energy efficiency class D and EPREL registration number: 1113206 L = 1272 mm, B = 95 mm, H = 100 mm

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 31.21 W 4000 lm 128 lm/W 4000 K 80
Damp-proof diffuser luminaire Splash Essential 30W 4000lm C

Damp-proof diffuser luminaire Splash Essential 30W 4000lm C

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1272 mm

Width: 95 mm

Height: 100 mm

Weight: 2 kg

Adjustability

Fixed

Design

Colour of housing: Silver gray

Electric

System power: 30 W

Appliance Class: I

Protection

IP: 66

IK: 10

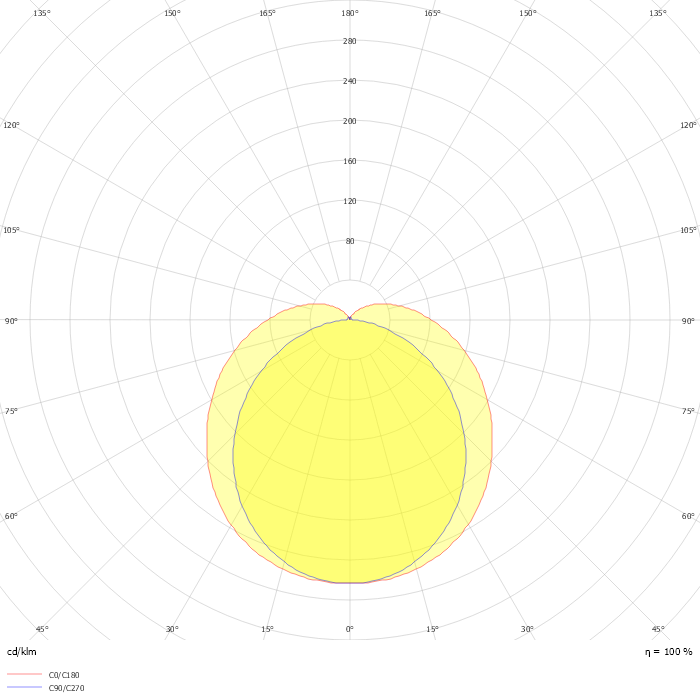

Photometric data

ZIP file
