Product data sheet

Midpin Magnetic Track - C3

DC3CBE-935M

Lightnet

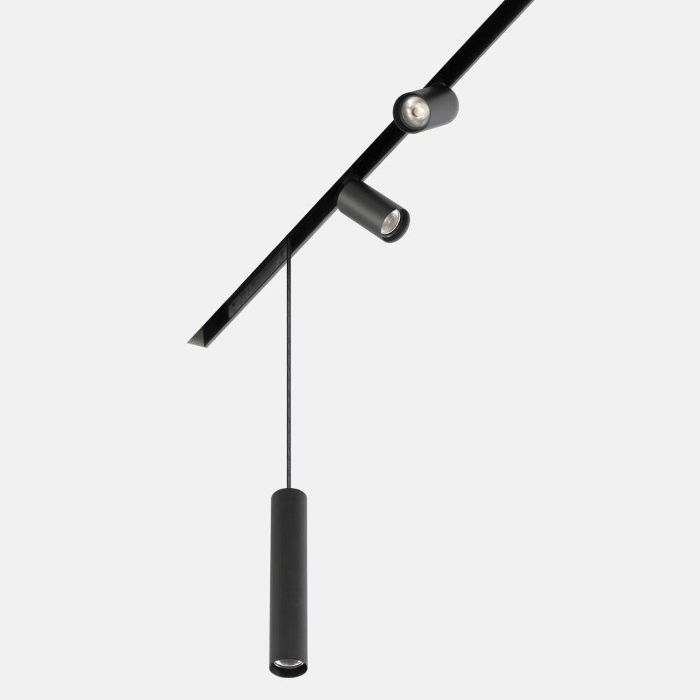

LED spotlight for 48V tracks with magnetic holder. Direct only light distribution. Surface black coated. 350° rotatable and 90° tiltable. Colour temperatures optionally 2700K, 3000K or 4000K. Binning initial ≤ MacAdam 3. Colour rendering CRI>90. Changeable lens optics with beam angle 20° (spot), 30° (medium) or 40° (flood). Optionally switchable or dimmable (DALI). Matric-R1 system pendant luminaires can be ordered separately with integrated 48V track and optional indirect light part (2700K, 3000K or 4000K). Maximum system flexibility due to extensive standard range of angle connectors and custom-made lengths.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 11 W 770 lm 70 lm/W 3500 K 82
Midpin Magnetic Track  - C3

Midpin Magnetic Track - C3

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Height: 200 mm

Diameter: 37 mm

Adjustability

Rotatable, Tiltable

Electric

System power: 11 W

Protection

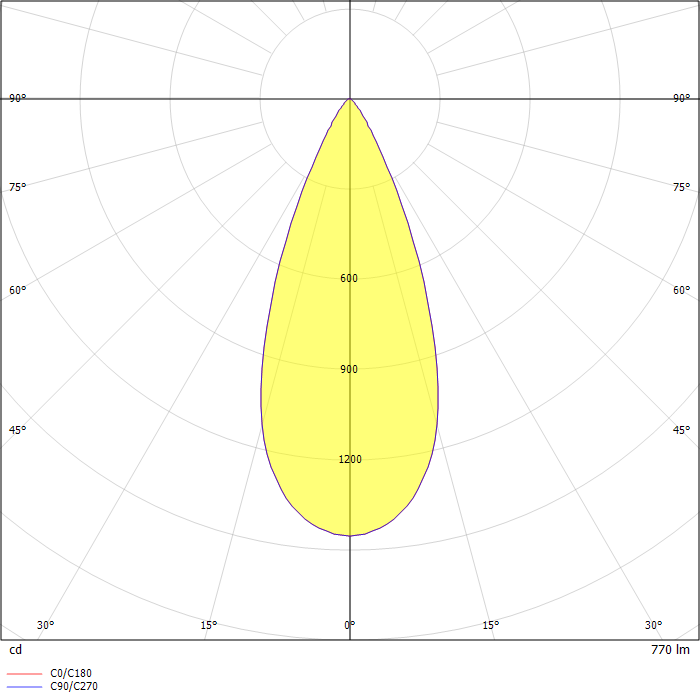

Photometric data

ZIP file
