Product data sheet

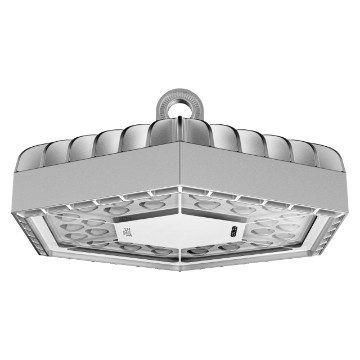

Esalite HB 16K Glass 840 60° DALI

GWS6333GD

GEWISS

Esalite - a new product in the technical LED range of industrial lighting. Long-lasting reliability and top performance are the fundamental features of this high bay, designed for both outdoor and indoor contexts. In addition, streamlined geometry and a multitude of uses make it ideal as either a floodlight or a pole-mounted light. Excellent performance combined with many high quality features make Esalite the perfect blend of technology and design, even for the most extreme applications.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 125 W 13600 lm 109 lm/W 4000 K 80
Esalite HB 16K Glass 840 60° DALI

Esalite HB 16K Glass 840 60° DALI

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 196 mm

Diameter: 434 mm

Adjustability

Fixed

Electric

System power: 125 W

Appliance Class: I

Integrated sensors

Integrated sensors: Motion sensor, Presence sensor

Protection

IP: 66

IK: 08

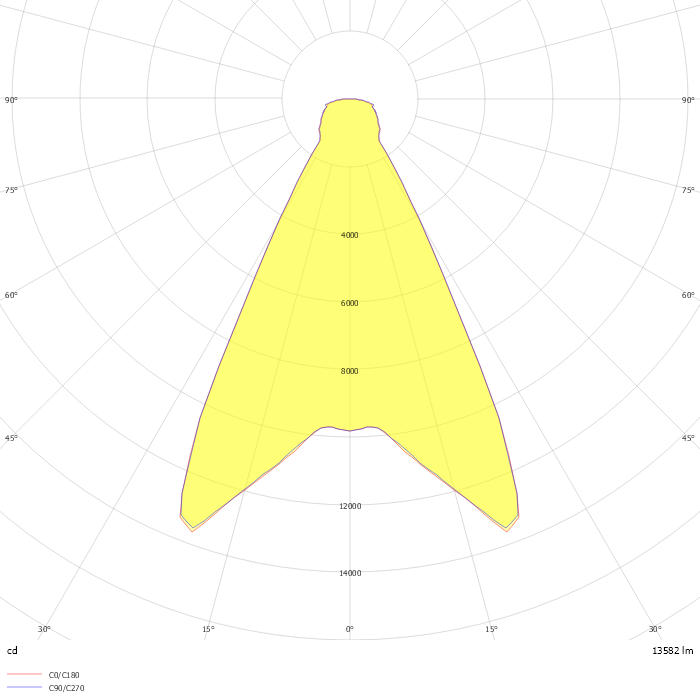

Photometric data

ZIP file
