Product data sheet

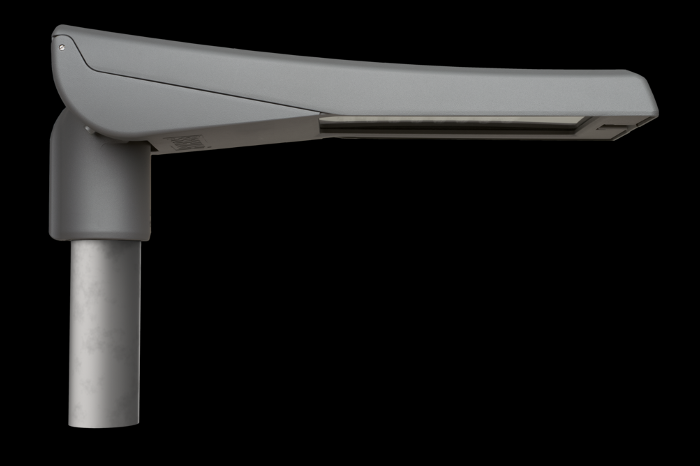

52 VIA LED outdoor light fitting

52 3203 730 (52000 0015)

Schuch

LED outdoor light fitting, VIA, 70 W, 9680 lm, 138 lm/W, Class II, IP66, asymmetrical wide beam, 3000 K, CRI≥ 70, Ta -40 °C/+25 °C, L90>100000 h (@ Ta max), Pane Safety glass clear, Housing Die-cast aluminium, Colour grey, DB702N. LED outdoor light fitting VIA of the GreenLine series with outstanding sustainable product design. Consisting of powder-coated die-cast aluminum housing, hinged, with safety clip. LED module(s) and ECG mounted on tool-free removable support plates in the upper part of the housing. Cable entry with gland and strain relief, disconnect plug connection and pressure equalization system in the lower part of the housing, flat safety glass, silicone seal, central locking made of aluminum. Zhaga compliant LED modules with high efficiency optics, direct beam, multi-layer technology. ECG with high surge voltage resistance, overload and short circuit protection. Universal mast spigot made of die-cast aluminum for mast spigot 60/76 for mast mounting or mast mounting. Separate reducing accessories are required for mast spigot 42. Tilt adjustment 0°, 5°, 10°, 15° for surface mounting, 0°, -5°, -10°, -15° for surface mounting, scaling on luminaire housing. Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 693,00 mm, Width/Diameter 368,00 mm, Height 222,00 mm, Net weight 10,70 kg.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 70 W 9681 lm 138 lm/W 3000 K 70
52 VIA LED outdoor light fitting

52 VIA LED outdoor light fitting

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted, Pole integrated

Shape and measurements

Length: 693 mm

Width: 368 mm

Height: 222 mm

Adjustability

Fixed

Electric

System power: 70 W

Appliance Class: I

Protection

IP: 66

IK: 09

Designation labels: CE

Photometric data

ZIP file
