Product data sheet

Vigilant LED Low Bay 9000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens

LWELUC29DHWNGN

Dialight

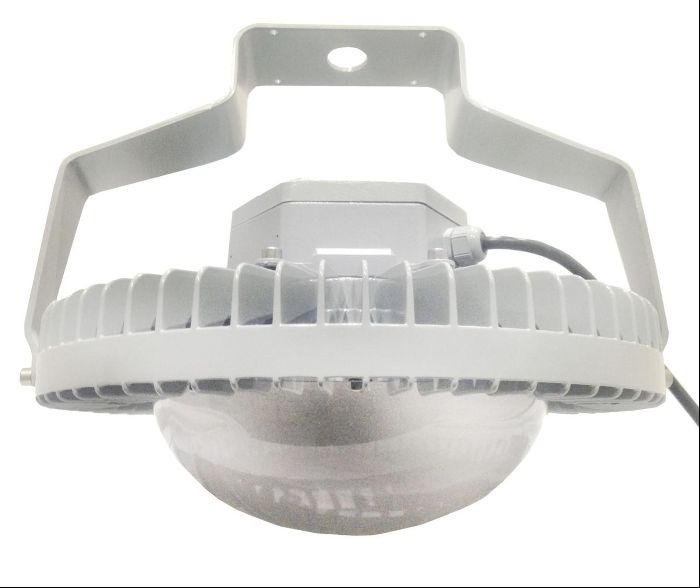

Product image 1: Vigilant LED Low Bay 9000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens
Product image 1: Vigilant LED Low Bay 9000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens

Product image 1: Vigilant LED Low Bay 9000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens



IP
66

IK
10

Vigilant LED Low Bay 9,000 Lumens 80 Watts 100-277V AC, 120-250V DC Cool White, 80CRI Diffused Polycarbonate Dome Lens CE ENEC EN 60598:2015 EN 60598-2-1 (ed.1), IEC 60598-2-1 (ed.8) EN 60598-2-24:2013 EN 62471:2008, EN 62778:2014 EN 62493:2010 IEC60068 Salt Spray Testing - Severity 1 IK10 Ultra Wide Distribution IP66/67 Scaled IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 80 W 9000 lm 112 lm/W 5181 K 80
Vigilant LED Low Bay 9000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens

Vigilant LED Low Bay 9000 Lumens, Ultra Wide Distribution, Diffused Polycarbonate Dome Lens

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 405 mm

Width: 405 mm

Height: 210 mm

Adjustability

Rotatable, Tiltable

Electric

System power: 80 W

Appliance Class: I

Protection

IP: 66

IK: 10

Other operating numbers

Ambient temperature range: -40...65°C

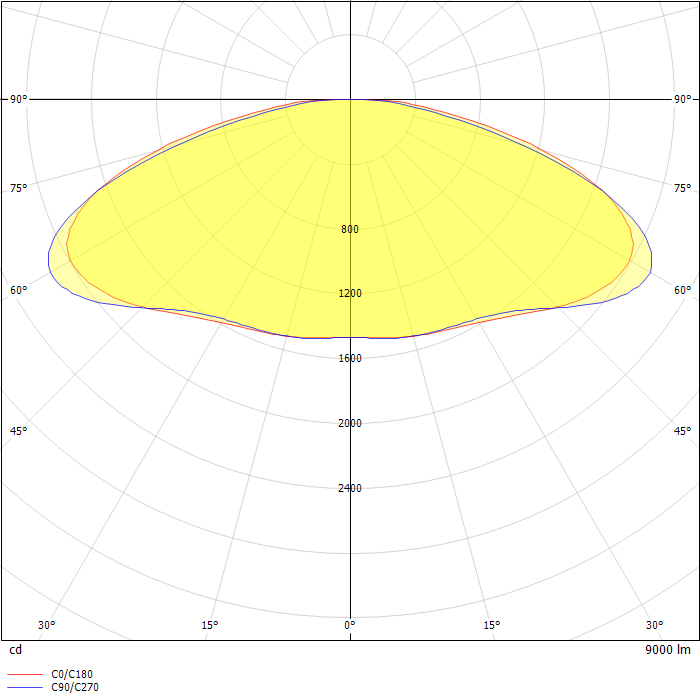

Photometric data

ZIP file

Download file
