Product data sheet

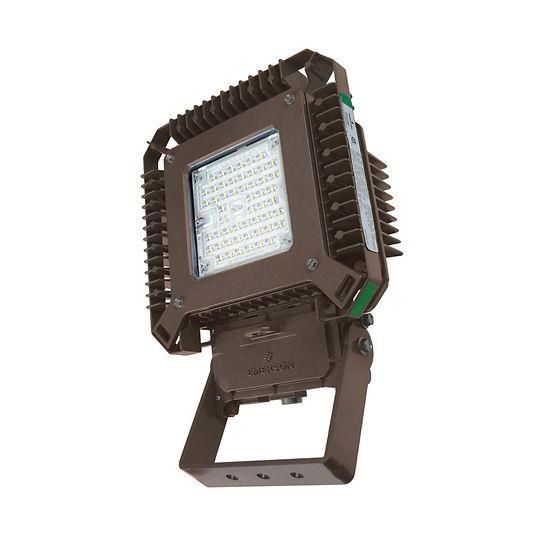

AREAMASTER LED 30000 LUMENS NEMA 7X 6 CLEAR GLASS 5000 CCT

AMLHL2CG7

Appleton (Emerson EGS)

Areamaster LED Gen2 HL Flood light Series Pole Mount 30000 LUMENS, 5000 K CCT Yoke Mount BU-120-277 Vac, 50/60Hz, BH-347-480 Vac , 50/60Hz 3/4" NPT Hub NO OPTICS CLEAR GLASS Class I, Division 2, Groups A, B, C, D Class I, Zone 2 GROUP IIC TYPE 3R, 4, 4X IP66/67 Suitable for Use in Wet Locations Marine Outside (Salt Water) Refer to catalog for additional options Class I, Division 2, Groups A, B, C, D Class I, Zone 2 GROUP IIC TYPE 3R, 4, 4X IP66/67 Suitable for Use in Wet Locations[more]

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 221.6 W 28062 lm 127 lm/W 5181 K 86
AREAMASTER LED 30000 LUMENS  NEMA  7X 6 CLEAR GLASS 5000 CCT

AREAMASTER LED 30000 LUMENS NEMA 7X 6 CLEAR GLASS 5000 CCT

Light output 1 (integrated)

LED

LOR:100%
Total power:221.6 W

Mounting mode

Pole top mounted

Shape and measurements

Length: 203 mm

Width: 191 mm

Height: 128 mm

Adjustability

Free

Electric

System power: 221.6 W

Appliance Class: II

Protection

IP: 67

Explosion zone suitability: 2
