Product data sheet

Pendant luminaire Torino round L1 15W CRI > 80 3000K DALI

2004.2398 - TORINO PEN450-3120 LED2350-830 DID DALI

Regent

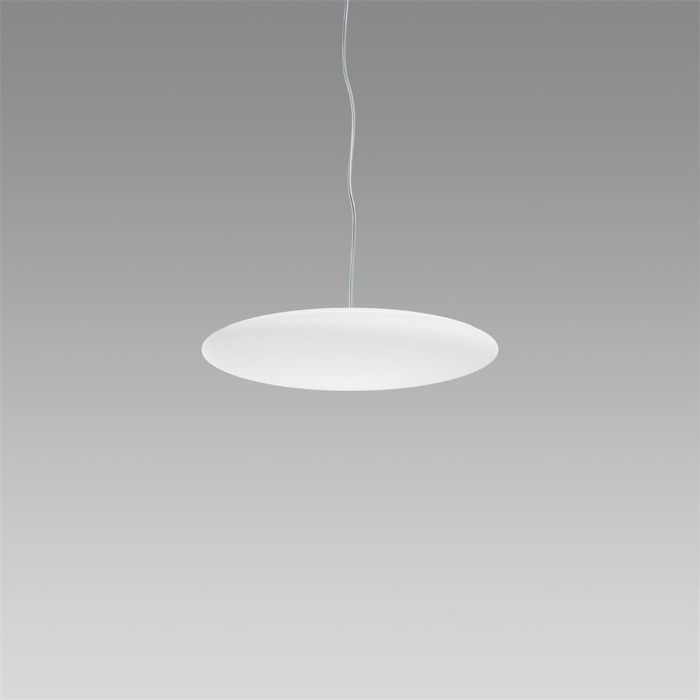

Product image 1: Pendant luminaire Torino round L1 15W CRI > 80 3000K DALI
Product image 1: Pendant luminaire Torino round L1 15W CRI > 80 3000K DALI

Product image 1: Pendant luminaire Torino round L1 15W CRI > 80 3000K DALI



IP
40

IK
03

Pendant luminaire Torino round, with LED, system power: 15 W, standby power 0.5 W, luminous flux of luminaire 2350 lm, colour rendering index CRI > 80, 3000 K, warm white, colour tolerances SDCM 3, lifetime LED L80 50'000 h, photobiological safety: the luminaire poses no danger (RG0), 230 V, direct-indirect light emission, ( 55%/45% ), opal, 1 integral control gear, DALI, pendant suspension kit to be ordered separately, Regent certified MINERGIE®-Modul luminaires S.A.F.E. 2019 (Re-0307), luminaire complies with the strict requirements for Minergie-certified luminaires protection class I, ingress protection IP40, glow wire test 650 °C, impact strength: IK 03, this product contains a light source of energy efficiency class B Ø = 450 mm, H = 100 mm, p = 3120 mm

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 28 W 2350 lm 84 lm/W 3000 K 80
Pendant luminaire Torino round L1 15W CRI > 80 3000K DALI

Pendant luminaire Torino round L1 15W CRI > 80 3000K DALI

Light output 1

1 x LED

Mounting mode

Pendant

Shape and measurements

Length: 450 mm

Width: 450 mm

Height: 97 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 15 W

Appliance Class: I

Protection

IP: 40

IK: 03

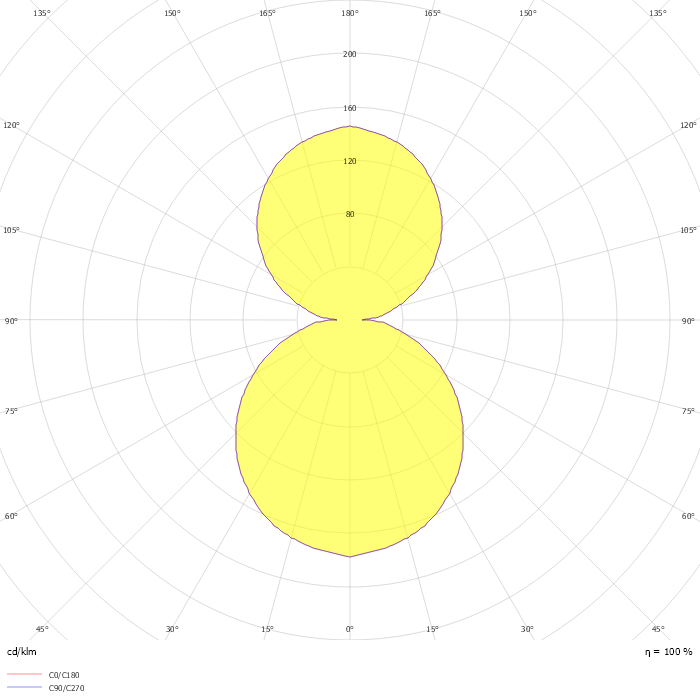

Photometric data

ZIP file
