Product data sheet

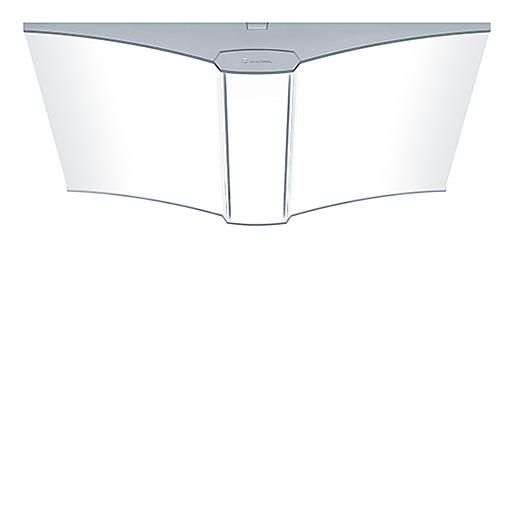

MLevo AL LED3600-830 Q LDO SR

42184945

Zumtobel

LED surface-mounted luminaire with digitally dimmable, DC voltage-compliant LED converter for DALI control with one DALI address for simultaneously controlling central and side area; total power: 29.3 W. LED service life lasts 50000 h before luminous flux is reduced to 85% of the initial value; Chromaticity tolerance (initial MacAdam): 3; Luminaire luminous flux: 3450 lm; Luminaire efficacy: 118 lm/W; Colour rendering Ra > 80, colour temperature 3000 K. Despite maximum quality control, recognisable colour differences between luminaires with the predefined binning may occur with cluster applications. To achieve a uniform appearance, we recommend consulting a lighting consultant with intended cluster or continuous row installations. Diffuse side areas for pleasant ambient lighting and high quality lenticular structure for central area for glare-free lighting with UGR < 19 and L65 < 3000 cd/m² and homogeneous appearance, internal 5-pole plug-in terminal block, high quality silver powder-coated aluminium end caps; Luminaire wired with halogen-free leads; Dimensions: 600 x 582 x 69 mm, weight: 6 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 29.3 W 3450 lm 118 lm/W 3000 K 80
MLevo AL LED3600-830 Q LDO SR

MLevo AL LED3600-830 Q LDO SR

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 600 mm

Width: 582 mm

Height: 69 mm

Weight: 6 kg

Design

Colour of housing: Silver gray

Electric

System power: 29.3 W

Voltage: 220-240 V AC

Controller: DALI

Appliance Class: I

Protection

IP: 40

Designation labels: CE, ENEC

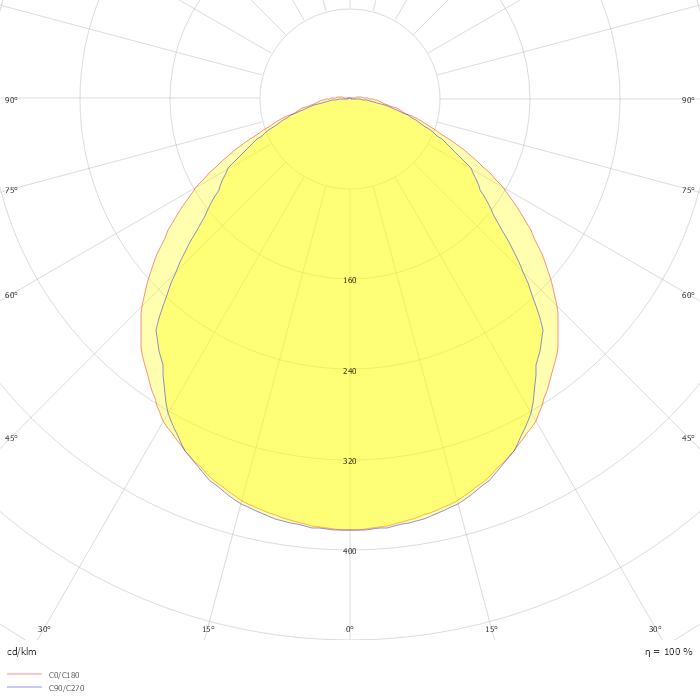

Photometric data

ZIP file
