Product data sheet

INV320LED-0600-J2-1-35E-22-11PCI-NIRO-PC-II-SF

31-321-06J201

ATM Lighting

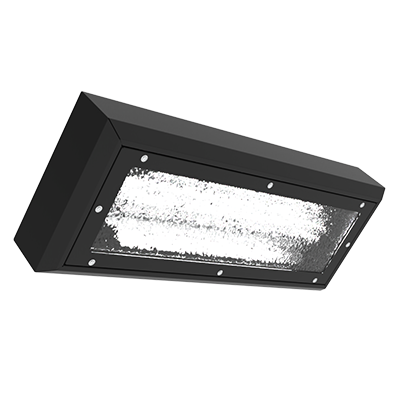

Product image 1: INV320LED-0600-J2-1-35E-22-11PCI-NIRO-PC-II-SF
Product image 1: INV320LED-0600-J2-1-35E-22-11PCI-NIRO-PC-II-SF

Product image 1: INV320LED-0600-J2-1-35E-22-11PCI-NIRO-PC-II-SF



IP
65

IK
10

Vandal-proof light fixture compatible with LED modules, designed to provide very high shock resistance (IK11+) and to be mounted on the ceiling or wall. The housing is made of powder coated stainless steel and the diffuser is made of prismatic polycarbonate. | Certificates: ENEC, CNBOP, Polish Railway Certificate (PKP PLK) | Weight: 11.5kg | Ambient temperature range: -40÷45°C

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 18.2 W 2427 lm 133 lm/W 4000 K 80
INV320LED-0600-J2-1-35E-22-11PCI-NIRO-PC-II-SF

INV320LED-0600-J2-1-35E-22-11PCI-NIRO-PC-II-SF

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 760 mm

Width: 280 mm

Height: 110 mm

Adjustability

Fixed

Design

Material impression: Gloss

Colour of housing: Black

Designer: Mirosław Dudak

Electric

System power: 18.2 W

Ballast: ECG

Controller: DALI

Suitable for feed-through wiring

Appliance Class: II

Protection

IP: 65

IK: 10

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -40...45°C

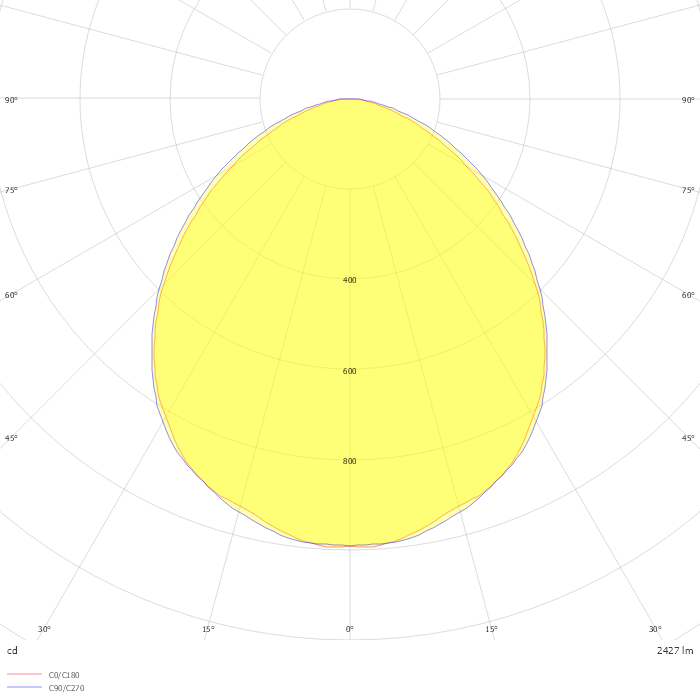

Photometric data

ZIP file

Download file
