Flexible luminaire with reflector technology and a high-positioned light source for very good anti-glare properties. Instead of replacing with cover rings, choose a complete luminaire in the size you need. Echo is a large product family for holes from 103-300mm. Dimmable all-round luminaire for public environments that need a lot of light, such as in rooms with high ceilings, corridors or shops. Perfect for new installations and to replace compact fluorescent tube luminaires. Selectable colour temperature via DIP-switch. Echo M and Echo L have adjustable lumen output via DIP-switch Power. Comes complete with driver for phase dimming or DALI-2. DALI-2 comes with Q-box Micro, push-in terminals and screwless strain relief. Dimmable with most common dimmers on the market.
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 22.4 W | 2353 lm | 105 lm/W | 5700 K | 80 |
Mounting mode
Ceiling recessed, Contact rail
Shape and measurements
Height: 110 mm
Diameter: 265 mm
Adjustability
Fixed
Electric
System power: 22.4 W
Ballast: ECG
Appliance Class: II
Protection
IP: 44
Designation labels: CE

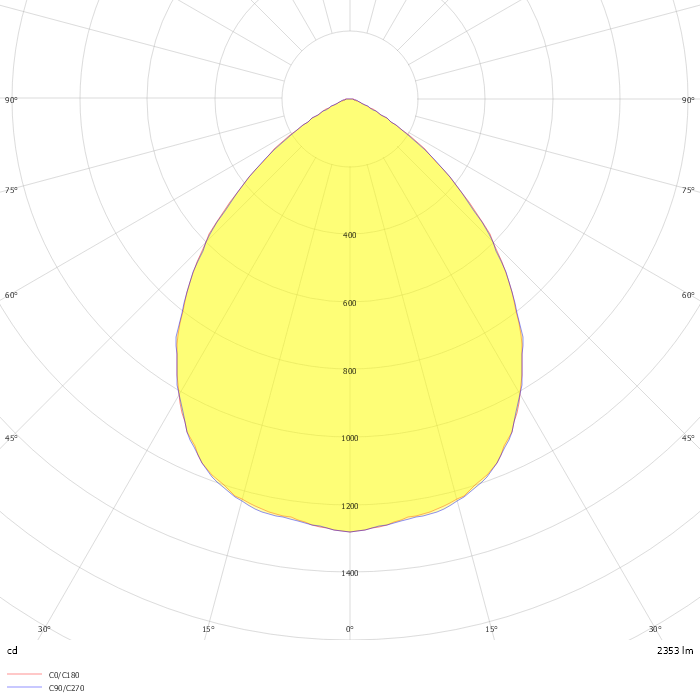

Photometric data
ZIP file
