Product data sheet

LED Downlight DLVL 9W 6500K/3000K/4000K

DLVL-9/3C

MPE

- Round shape - Recessed - mounted on ceiling - The lamp is cast aluminum monolithic, powder coated for fast heat dissipation - Detachable driver for easy connection - Lamp with gold rim - The light has 3 color modes: Cool White-Warm White-Natural - Size: Ø140 x 40 mm - Cut out: Ø105mm - Voltage: 100-240VAC - Power: 9W - Power Factor (PF): >0.5 - Luminance: 990 lm - Color Temperature (CCT): 6500K/3000K/4000K - RA >80 High Color Rendering Index - Beam angle: 120◦ - Chip LED: SMD 2835 - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE – RoHS

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED Module 9 W 2970 lm 330 lm/W 82
LED Downlight DLVL 9W 6500K/3000K/4000K

LED Downlight DLVL 9W 6500K/3000K/4000K

Light output 1

1 x LED Module

Mounting mode

Ceiling recessed

Shape and measurements

Length: 140 mm

Width: 149 mm

Height: 40 mm

Adjustability

Fixed

Electric

System power: 9 W

Colour adjustable

Protection

IP: 20

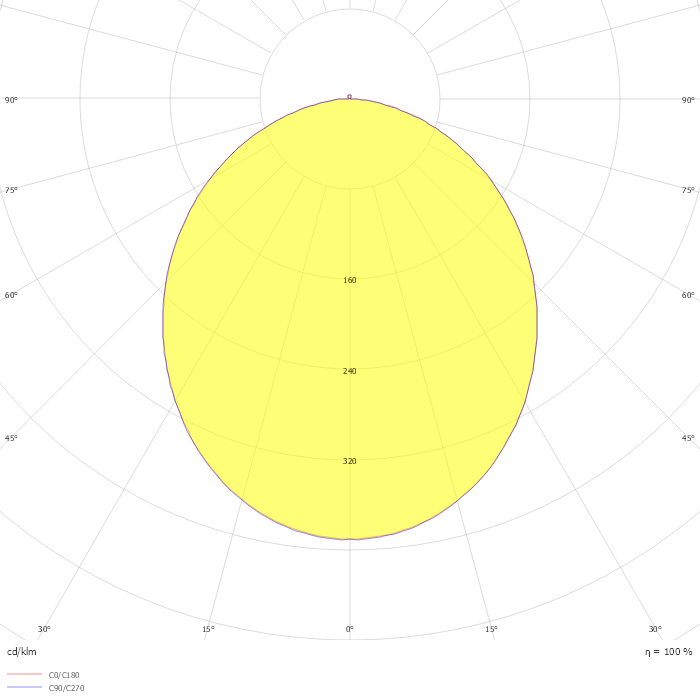

Photometric data

ZIP file
