Product data sheet

LED High Bay HBV 120W 6500K

HBV-120T

MPE

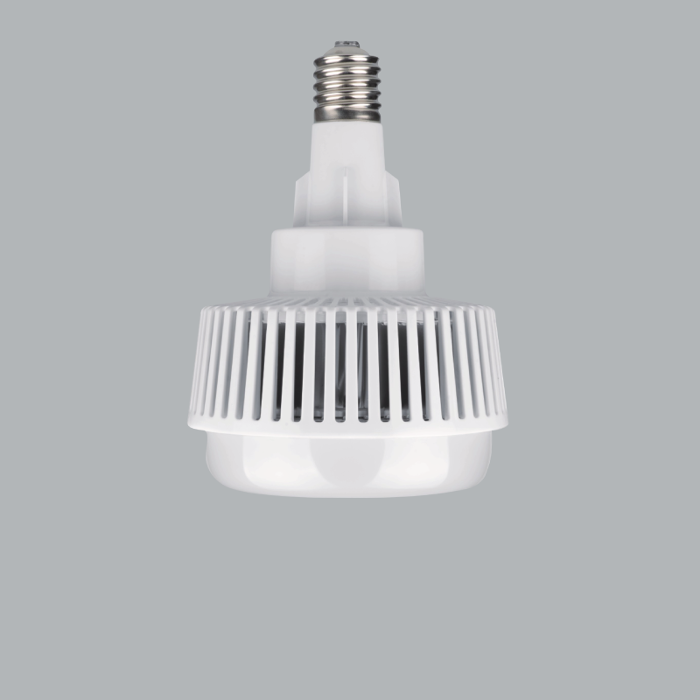

Product image 1: LED High Bay HBV 120W 6500K
Product image 1: LED High Bay HBV 120W 6500K

Product image 1: LED High Bay HBV 120W 6500K



IP
20

- Led highbay - The lamp body is made of PC plastic, the inside has aluminum wings for heat dissipation - Driver is integrated inside the lamp - Size: Ø230 x 306 mm - Base type: E40 - Voltage: 100-240VAC - Power: 120W - Power Factor (PF): >0.9 - Luminance: 10.800 lm - Color Temperature (CCT): 6000-6500K - RA >80 High Color Rendering Index - Beam angle: 140⁰ - Chip LED: SMD 2835 - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE – RoHS

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 120 W 10800 lm 90 lm/W 6500 K 79
LED High Bay HBV 120W 6500K

LED High Bay HBV 120W 6500K

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Height: 306 mm

Diameter: 230 mm

Adjustability

Fixed

Electric

System power: 120 W

Protection

IP: 20

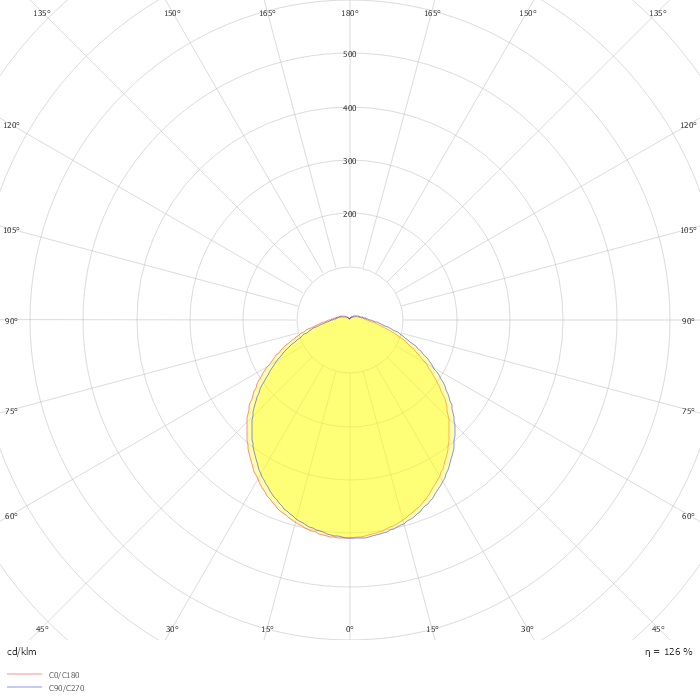

Photometric data

ZIP file

Download file
