Product data sheet

LED panel troffer 60×60, built-in, white, 36W, neutral white, UGR

ZR1723

EMOS

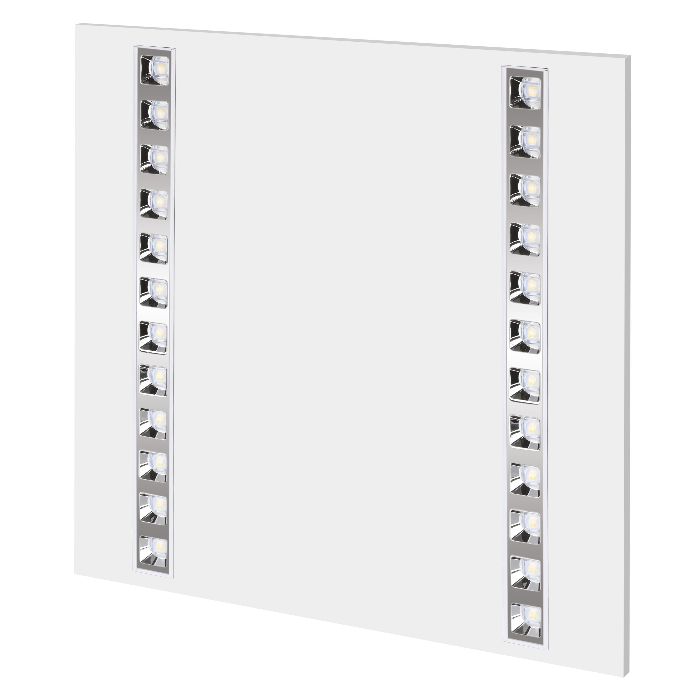

Product image 1: LED panel troffer 60×60, built-in, white, 36W, neutral white, UGR
Product image 1: LED panel troffer 60×60, built-in, white, 36W, neutral white, UGR

Product image 1: LED panel troffer 60×60, built-in, white, 36W, neutral white, UGR



IP
20

IK
02

shape: square luminaire type: recessed light color: neutral white power: 36 W IP rating: IP20 body colour: white luminous flux: 4 240 lm replacement of incandescent bulb: 4× 18 W CFL dimming function: no color temperature: 4 000 K motion sensor: no line: PROFI PLUS voltage: 220–240 V beam angle: 70° mounting hole: not stated source of light: LED UGR<: 16 body material: steel plate lifetime: 40 000 hours sensor detection range: no sensor color rendering index (CRI): Ra > 80 material of the diffuser: not stated output current from power source: 900 mA frequency: 50/60 Hz current: 155 mA diffuser type: not stated warranty period: 5 years dimensions: 595 × 595 × 21.8 mm packaging: 1 pc, box energy efficiency class (from 1.9.2021): not stated

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 34.3 W 4343 lm 127 lm/W 4000 K 80
LED panel troffer 60×60, built-in, white, 36W, neutral white, UGR

LED panel troffer 60×60, built-in, white, 36W, neutral white, UGR

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 595 mm

Width: 595 mm

Height: 11 mm

Adjustability

Fixed

Electric

System power: 34.3 W

Appliance Class: III

Protection

IP: 20

IK: 02

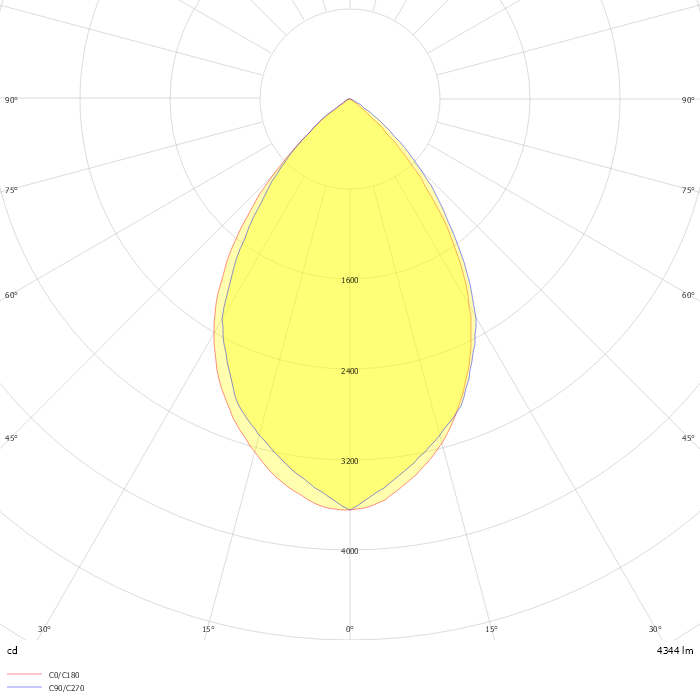

Photometric data

ZIP file
