Product data sheet

CAP XL L80

Capo LED XL

Dextra

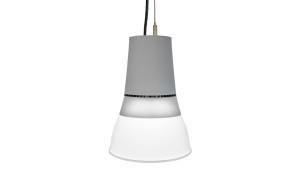

Capo LED - C84, IP20 Decorative luminaire suitable for both ambient and accent lighting, matt grey aluminium spun housing, translucent grey collar, opal refractor, supplied complete with 3m wire suspension kit. Options: E3 - Emergency control gear (620 lumens output) ST3 - Emergency Selftest AT3 - Emergency Autotest (cannot be combined with Dimming) S - Switch Dimming A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function) WH - White Housing C83 - CRI 80, 3000K RED- Red Collar ORA - Orange Collar GRN - Green Collar BLE - Blue Collar OP - Opal Collar

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
76.3 W 6513 lm 85 lm/W 4000 K 80
CAP XL L80

CAP XL L80

Light output 1 (integrated)

Mounting mode

Pendant

Shape and measurements

Height: 570 mm

Diameter: 416 mm

Adjustability

Height adjustable

Electric

System power: 76.3 W

Ballast: ECG

Protection

IP: 20

Designation labels: CE

Photometric data

ZIP file
