Z44 is a versatile luminaire for general lighting in locations requiring protection class up to IP44. The efficient frosted prismatic diffuser offers exceptional uniformity, while safeguarding against glare. The modern and slim design of the luminaire minimizes packaging materials and makes the Z44 very transportation efficient, further contributing to the sustainability of the solution. Z44 can be ordered with built-in HF sensor. The sensor ensures that the light is on only when required. Easy to use settings of detection range and delay time. There are three different sensor-versions: On/off. Profile 1 with 100 % light when presence is detected and 10% light at no detection, “High-low”. Profile 2 with 100% light when presence is detected, then 10% light for 30 minutes, then the luminaire turns off, ”High-Low-Off”. Emergency versions with 3h built-in battery-pack. Through-wiring versions on request.
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 29 W | 4670 lm | 161 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted
Shape and measurements
Length: 1192 mm
Width: 176 mm
Height: 60 mm
Adjustability
Fixed
Electric
System power: 29 W
Appliance Class: I
Protection
IP: 44
IK: 03

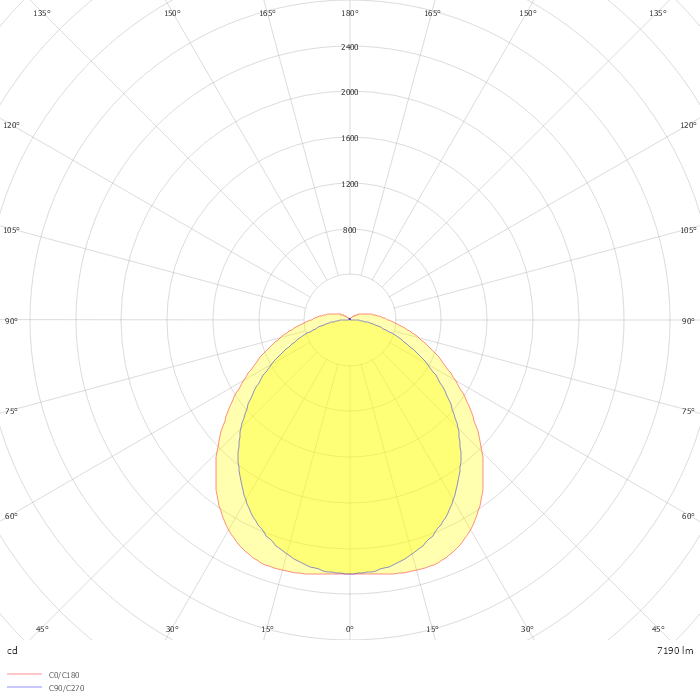

Photometric data
ZIP file
