Product data sheet

Wall Light REC Stair - WW

L17216SW

Proled (MBN GmbH)

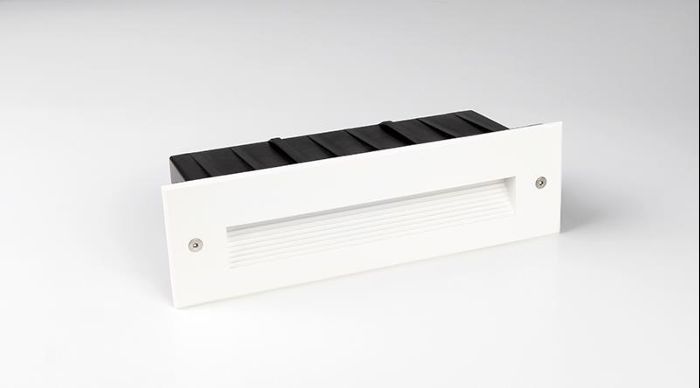

Product image 1: Wall Light REC Stair - WW
Product image 1: Wall Light REC Stair - WW

Product image 1: Wall Light REC Stair - WW



IP
65

IK
10

The PROLED WALL LIGHT REC series is designed for wall or step integration and offers various design possibilities in architectural illumination. - dimmable and controllable via DMX 512, DALI, KNX, 1-10V, CASAMBI, RF by MULTI power supplies or PRO CONTROLLER - incl. PVC plastic mounting sleeve

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 5 W 160 lm 32 lm/W 3000 K 80
Wall Light REC Stair - WW

Wall Light REC Stair - WW

Light output 1 (integrated)

LED

Mounting mode

Wall recessed

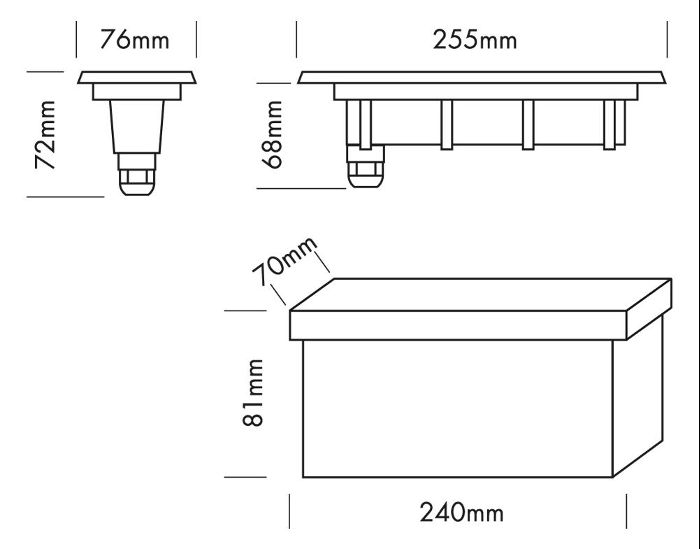

Shape and measurements

Length: 255 mm

Width: 84 mm

Height: 76 mm

Weight: 0.8 kg

Adjustability

Fixed

Electric

System power: 5 W

Controller: Dimmable 1..10V, DMX, DALI

Appliance Class: III

Protection

IP: 65

IK: 10

Other operating numbers

Ambient temperature range: -10...45°C





Photometric data

ZIP file

Download file
