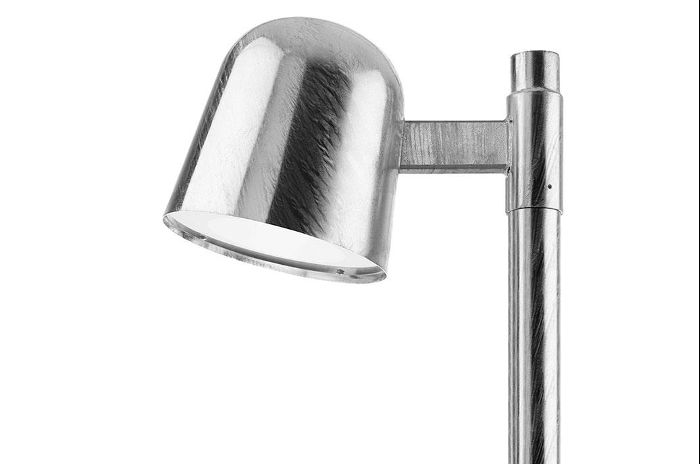

Perhaps you recognise this one; Convex was launched two years ago, but as a wall fixture. Now it has evolved into both a pole fixture and a bollard. It has the same amiable expression with the slightly curved top, where the design’s clarity and the construction’s durability contribute to a long life. Energy efficient due to its LED technology, Convex also provides perfect illumination and suggests many areas of use. Use galvanized model when installing near coastline. Finish: Painted black (RAL 9005), silvergrey (RAL9006) or galvanized metal.Tempered glass. Symmetrical or asymmetrical light beam. LED info: Led see above. CCT 3000K. SDCM 3. CRI >80 Installation: On pole top D60mm. Connection: Cable with quick connection inside the pole. Design: Jens Fager 2016.
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 35 W | 2225 lm | 64 lm/W | 3000 K | 80 |
Mounting mode
Pole top mounted, Pole integrated
Shape and measurements
Length: 221 mm
Width: 333 mm
Height: 236 mm
Adjustability
Fixed
Design
Colour of housing: Black, Silver gray
Electric
System power: 35 W
Controller: DALI
Suitable for feed-through wiring
Appliance Class: I
Protection
IP: 65
Designation labels: CE

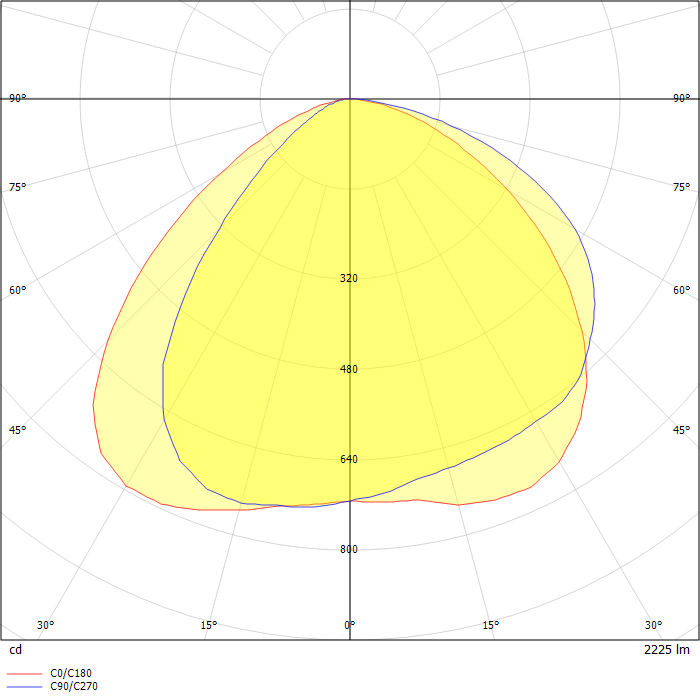

Photometric data
ZIP file
