Housing: in die-cast aluminium. Optics: in high-performance prismatic and polished aluminium. Diffuser: tempered glass, 4 mm thick, resistant to thermal shock and impact (UNI EN 12150-1:2001). Coating: pre-treatment of metal surface, polyester powder coating to ensure resistance to corrosion and salt spray fogs, UV stabilised. Photobiological risk: exempt risk group according to EN62471. : EN60598-1. With degree of protection according to EN60529. Equipment: - during installation the frame stays attached via a safety hinge mechanism that prevents it from dropping down accidentally. - with wall mounting plate. - gasket in eco-friendly material. Mounting: can be installed on pole with acc. 96 Easy installation: equipped for wall mount.
Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
1 x LCWJ-1282 | 9 W | 1119 lm | 124 lm/W | 4000 K | 80 |
Mounting mode
Wall mounted
Shape and measurements
Length: 409 mm
Width: 340 mm
Height: 341 mm
Adjustability
Fixed
Design
Material impression: Aluminum
Electric
System power: 9 W
Appliance Class: I
Protection
IP: 65
IK: 07
Designation labels: CE

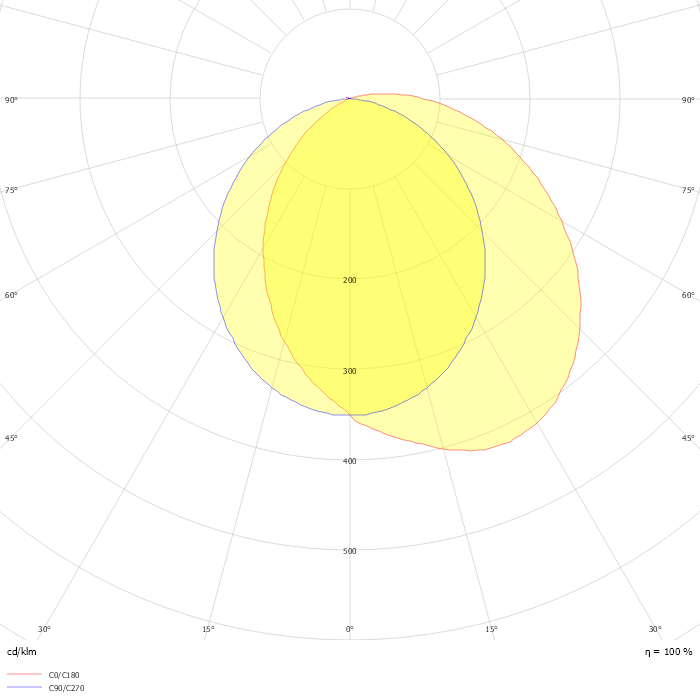

Photometric data
ZIP file
