Product data sheet

AVN D2 18L35 R/S BPSW CL1 D60 L740 CU

96261392

Thorn Lighting

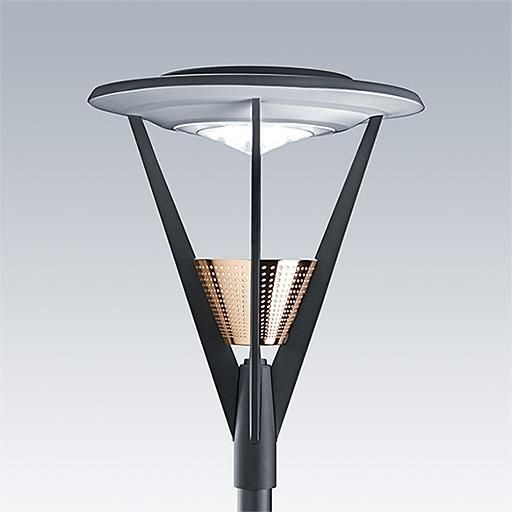

An elegant LED amenity lantern. Electronic, fixed output control gear. Light distribution: symmetric. Class I electrical, IP66, IK08. Base and arms: die-cast aluminium, powder coated dark sandy grey 900. Canopy: spun aluminium, powder coated dark sandy grey 900. Lampshield: metallised polycarbonate with copper. Diffuser: clear UV stabilised polycarbonate with anti glare prisms. Equipped with power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Complete with 4100K LED Dimensions: Ø596 x 732 mm Total power: 21 W Weight: 8.6 kg Scx: 0.134 m²

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 21 W 1959 lm 93 lm/W 3000 K 70
AVN D2 18L35 R/S BPSW CL1 D60 L740 CU

AVN D2 18L35 R/S BPSW CL1 D60 L740 CU

Light output 1 (integrated)

LED

Mounting mode

Pole top mounted

Shape and measurements

Height: 732 mm

Diameter: 596 mm

Weight: 8.6 kg

Design

Material impression: Aluminum

Electric

System power: 21 W

Voltage: 230 V AC

Appliance Class: I

Protection

IP: 66

IK: 08

Designation labels: CE

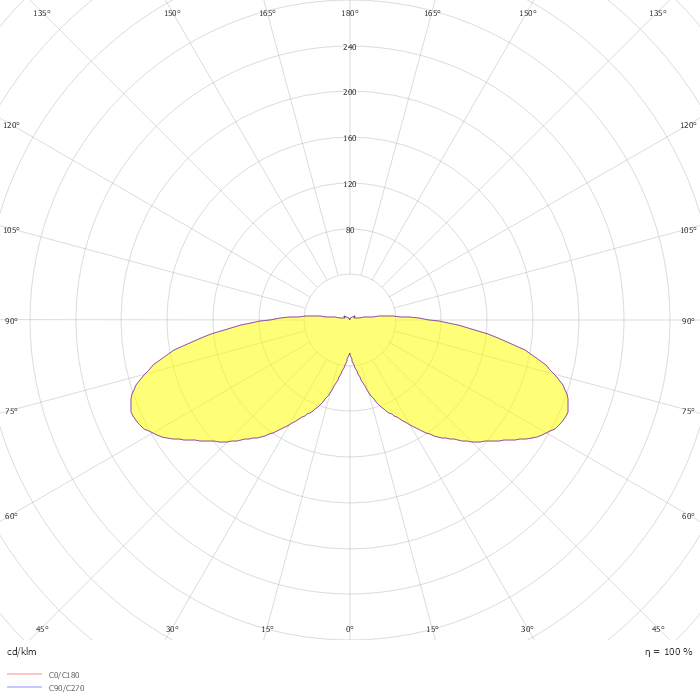

Photometric data

ZIP file
