Square recessed panel luminaire with low glare, for 600 x 600 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-ready luminaire with DALI-2 technology. Suitable for central battery emergency installations acc. to EN 60598-2-22. Push DIM function for dimming and switching directly on a pushbutton. Versions available with CRI 90. Extruded aluminum frame. Polystyrene diffuser. 5-pole terminal block, cable cross section up to 5 x 2.5 mm². Lifetime (L80/B10): 70,000 h (at 25 °C). Product benefits: Suitable luminaire for VIVARES and other DALI-2 Light Management Systems. Tool-free electrical connection due to push button connector. Through-wiring possible with included connector box. Energy savings thanks to high system efficacy: up to 130 lm/W. Good glare reduction (UGR < 19). High color consistency with SDCM 3. Extended services such as energy monitoring and remote maintenance possible with DALI versions. External driver for extended flexibility and easy installation. Low flicker light thanks to special electronic control gear. Suitable for emergency lighting. 5 years guarantee. Areas of application: Direct replacement for recessed luminaires with fluorescent lamps. Offices, conference rooms. Reception areas, foyers, corridors, elevators. Suitable for recessed ceiling systems with grid size of 600 x 600 mm. Equipment / Accessories: Accessories for several mounting options available. Connector box with 5-pole terminal included. Security rope for luminaire included. Security brackets preinstalled. External control gear included. Suitable for use with separate Emergency Conversion Box.
| Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| LED | 28 W | 3640 lm | 130 lm/W | 4000 K | 80 |
Mounting mode
Ceiling mounted, Pendant
Shape and measurements
Length: 595 mm
Width: 595 mm
Height: 32 mm
Weight: 1.8 kg
Adjustability
Fixed
Design
Material impression: Stainless steel
Colour of housing: White
Electric
System power: 28 W
Appliance Class: II
Protection
IP: 40
IK: 02
Designation labels: CE, ENEC
Other operating numbers
Ambient temperature range: -10...50°C

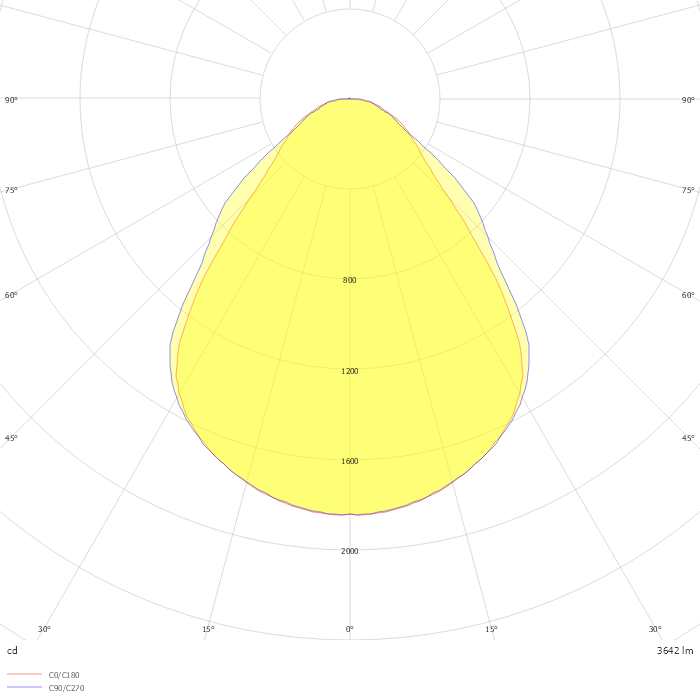

Photometric data
ZIP file
