Product data sheet

3-PH Track light focusable, 24W, 20°-55°, black matt, 3000K

114997

ISOLED

Product image 1: 3-PH Track light focusable, 24W, 20°-55°, black matt, 3000K
Product image 1: 3-PH Track light focusable, 24W, 20°-55°, black matt, 3000K

Product image 1: 3-PH Track light focusable, 24W, 20°-55°, black matt, 3000K



IP
20

3-PH Track light, focusable, 24W, matt black, 3000K, IP20, 5-year guarantee | Dimensioned wattage: 24 W | Effective wattage: 23.8 W | Energy efficiency class: E (EU 2019/2015) | Nominal Voltage: 220 - 240 V AC | Material: cast aluminum | Surface color: matt black | Protection class: IP20 | suitable for indoor use only | permissible ambient Temperatures: -20° - 40° C | Diameter: 72 mm | beam angle: 20° - 55° min-max | variably adjustable | Color temperature: 3000K | Color rendering index: 90 (Ra 1-8) | Luminous flux: 2250 lm | Useful life: 68000 h (L80|B50) | Warranty: 5 years | | FABRICATION: ISOLED 114997

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 23.8 W 2250 lm 95 lm/W 3000 K 90
3-PH Track light focusable, 24W, 20°-55°, black matt, 3000K

3-PH Track light focusable, 24W, 20°-55°, black matt, 3000K

Light output 1

1 x LED

Mounting mode

Ceiling mounted, Contact rail, Contact rail

Shape and measurements

Height: 185 mm

Diameter: 72 mm

Adjustability

Rotatable, Tiltable

Design

Material impression: Aluminum

Colour of housing: Black

Electric

System power: 23.8 W

Ballast: ECG

Protection

IP: 20

Designation labels: CE

Other operating numbers

Ambient temperature range: -20...40°C

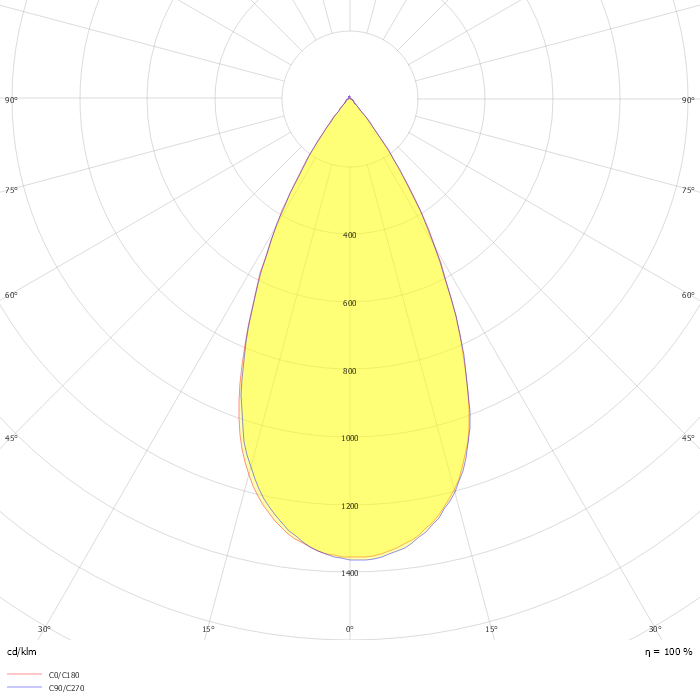

Photometric data

ZIP file

Download file
