Product data sheet

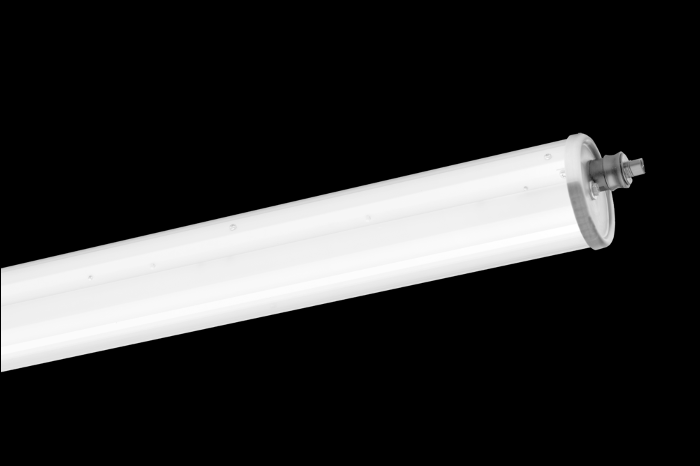

110 TUBEO LED tubular light fitting

110 15L60TB PC (11000 0036)

Schuch

LED tubular light fitting, TUBEO, 39 W, 6160 lm, 158 lm/W, Class I, IP68 (3m), IPX9K, narrow wide beam, 4000 K, CRI≥ 80, Ta -25 °C/+35 °C, L70>100000 h (@ Ta max), L80>70000 h (@ Ta max), L90>50000 h (@ Ta 25°C), Tube PC clear, Closure Stainless steel (1.4571), stainless steel pipe clamps included, for food areas. LED tubular light-fitting TUBEO with impact-resistant clear PC tube Ø 100mm, stainless steel locking caps, foamed silicone gasket and special element for length compensation. Powder-coated sheet steel reflector with Zhaga LED modules, frosted LED covers for glare limitation and ECG with overload and short circuit protection. Electrical connection by connection plug (FastConnect), male connector pre-installed, female with strain relief attached. Two stainless steel pipe clamps included. Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 1655,00 mm, Width/Diameter 133,00 mm, Height 117,00 mm, Net weight 4,64 kg.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 39 W 6160 lm 158 lm/W 4000 K 80
110 TUBEO LED tubular light fitting

110 TUBEO LED tubular light fitting

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Wall mounted

Shape and measurements

Length: 1655 mm

Width: 133 mm

Height: 117 mm

Adjustability

Fixed

Electric

System power: 39 W

Appliance Class: I

Protection

IP: 68

IK: 10

Designation labels: CE

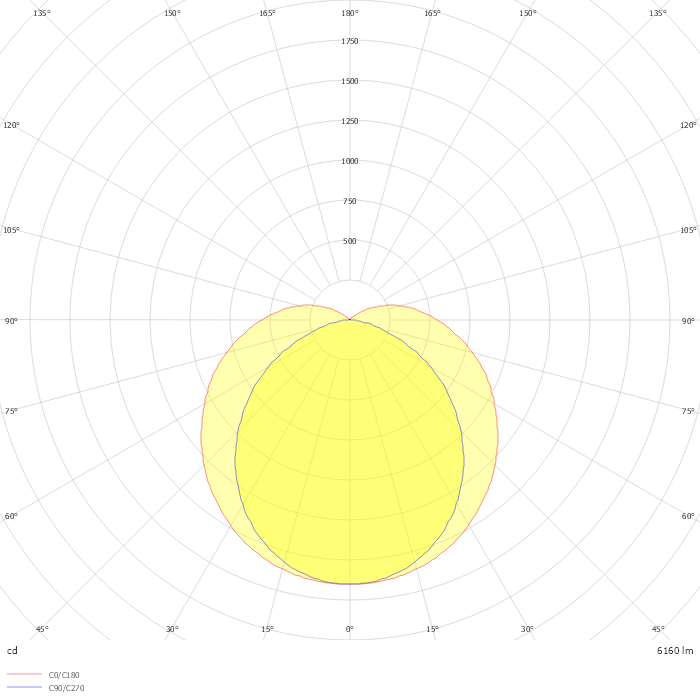

Photometric data

ZIP file
