Direct-mounted discrete light engine for uniformity and visual comfort, Low profile, die cast aluminum housing, Versatile mount arm - Multiple drill patterns, round and square poles, Available in 7,500 - 41,000 nominal lumens (50 - 300W), Maximize energy savings with efficacies of up to 148 lumens per watt, Replaces 70W up to 1,000W HID equivalents, Integrated stand-alone or wireless controls for energy savings, 5 optical distributions along with shielding options, 120-277V , 347V or 480V voltage options
Lamp type | Nominal lamp power | Total flux | Luminous efficacy | CCT | CRI |
---|---|---|---|---|---|
LED | 112 W | 10588 lm | 95 lm/W | 3000 K | 70 |
Mounting mode
Pole top mounted
Shape and measurements
Length: 335 mm
Width: 343 mm
Height: 10 mm
Adjustability
Fixed
Electric
System power: 112 W
Protection
IP: 47

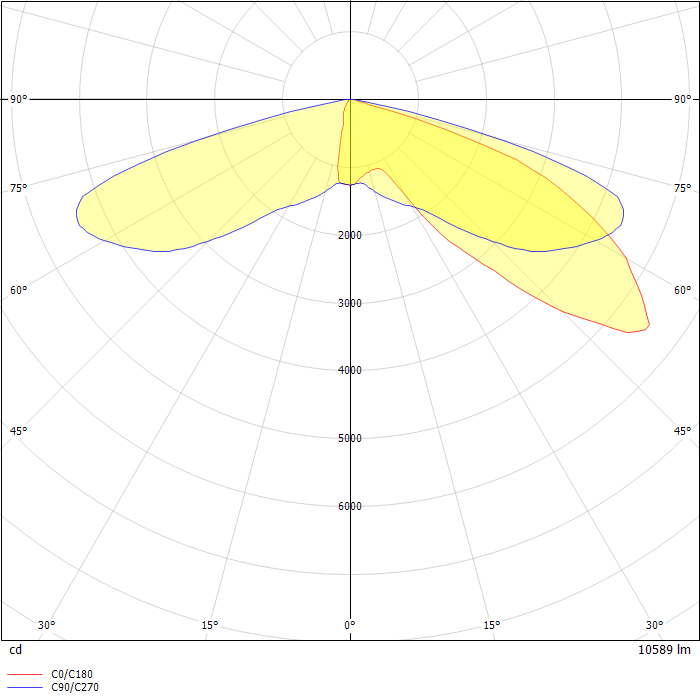

Photometric data
ZIP file
