Product data sheet

PLAO LB LED 12W 1050lm 4000K IP54 white ED

300101.00004

LUG

Product image 1: PLAO LB LED 12W 1050lm 4000K IP54 white ED
Product image 1: PLAO LB LED 12W 1050lm 4000K IP54 white ED

Product image 1: PLAO LB LED 12W 1050lm 4000K IP54 white ED



IP
54

IK
10

Modern plafond supplied with LED light sources. Mounting: directly on the ceiling Body: ABS plastic Power: 220-240V 50/60Hz Lifetime (TM21 L90B10): 30 000 h Operating temperature range: 0˚C ... +25˚C Warranty: 3 years Application: public utility facilities, halls, staircases, corridors, hotels

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 12 W 1050 lm 88 lm/W 4000 K 80
PLAO LB LED 12W 1050lm 4000K IP54 white ED

PLAO LB LED 12W 1050lm 4000K IP54 white ED

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Height: 94 mm

Diameter: 264 mm

Adjustability

Fixed

Design

Colour of housing: White

Electric

System power: 12 W

Appliance Class: II

Protection

IP: 54

IK: 10

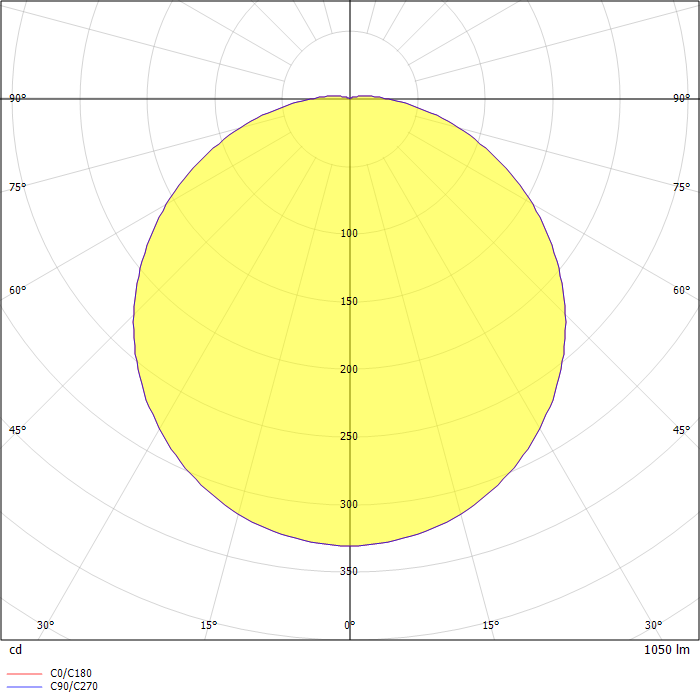

Photometric data

ZIP file

Download file
