Product data sheet

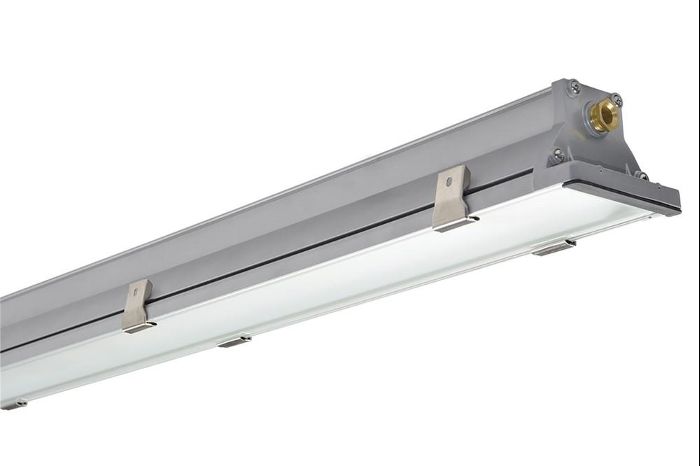

ALUMAX LED 1.4ft 4400/840

50460

TREVOS

chemically resistant, dustproof and waterproof industrial light fitting made of painted aluminium alloy; heat-strengthened safety glass with shatter pursuant to ČSN EN 12150-1; ON/OFF electronic driver (AC, DC on demand); Body: grey aluminium profile, powder coated; Diffuser: satin, heat-strengthened safety glass; Reflector: steel sheet, white (RAL 9003); Clips: stainless steel; Sealing: polyurethane (PUR) in the groove on the body; Connection: screwless three-pole terminal block; Power: 27,3 W; Luminaire flux: 3440 lm; Lifetime: L90/B10; 50000 hours; Impact strength: IK10; Ambient temperature: -25|45 °C; Weight: 4,2 kg;

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 27.3 W 4520 lm 166 lm/W 4000 K 80
ALUMAX LED 1.4ft 4400/840

ALUMAX LED 1.4ft 4400/840

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1224 mm

Width: 105 mm

Height: 75 mm

Adjustability

Fixed

Design

Material impression: Aluminum

Colour of housing: White

Designer: TREVOS

Electric

System power: 27.3 W

Ballast: ECG

Appliance Class: I

Protection

IP: 66

IK: 10

Designation labels: CE, ENEC

Other operating numbers

Ambient temperature range: -25...45°C

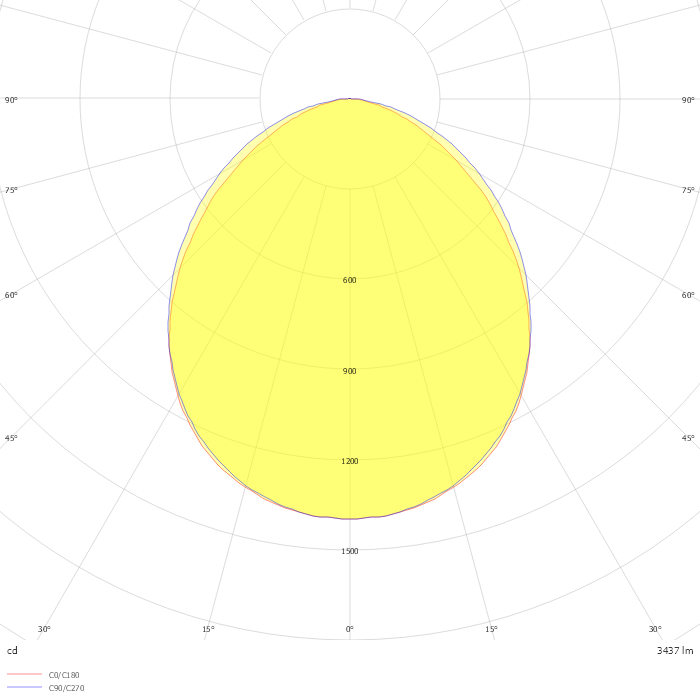

Photometric data

ZIP file
