Product data sheet

SL787+ RE M 9 S/A 840 WH9016 OP

3109610

Performance in Lighting

Art. 3109610 LED ceiling mount indoor luminaire, comprising: Extruded aluminium profile housing, die-cast aluminium end caps, painted. Opal PMMA diffuser for optimal light diffusion and a high light uniformity. Streamlined, simple design with flush end caps. High-quality workmanship of profile connections for a perfect look. High economic efficiency thanks to luminaire efficiencies of up to 159 lm/W. UGR <19 for all luminosities. Through-wiring possible. Simple and convenient lighting installation. Interchangeable lighting inserts. Direct light distribution. Colour rendering index Ra > 80. Colour tolerance according to MacAdam ≤ 3 SDCM. Includes recessed mounting kit. Many other luminaire designs and strip light configurations are available at www.light-performer.com.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 10 W 1530 lm 153 lm/W 4000 K 80
SL787+ RE M 9 S/A 840 WH9016 OP

SL787+ RE M 9 S/A 840 WH9016 OP

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 1120 mm

Width: 72 mm

Height: 86 mm

Design

Colour of housing: White

Electric

System power: 10 W

Appliance Class: I

Protection

IP: 30

IK: 07

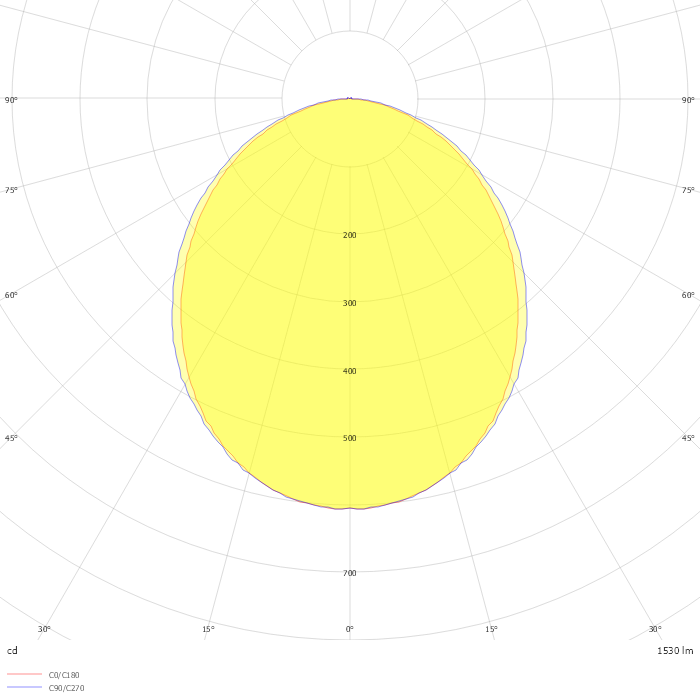

Photometric data

ZIP file
