DuroSite LED Flood Light 10500 Lumens, NEMA 4 Distribution, Clear Tempered Glass Lens

FLW244NC5NG

Dialight

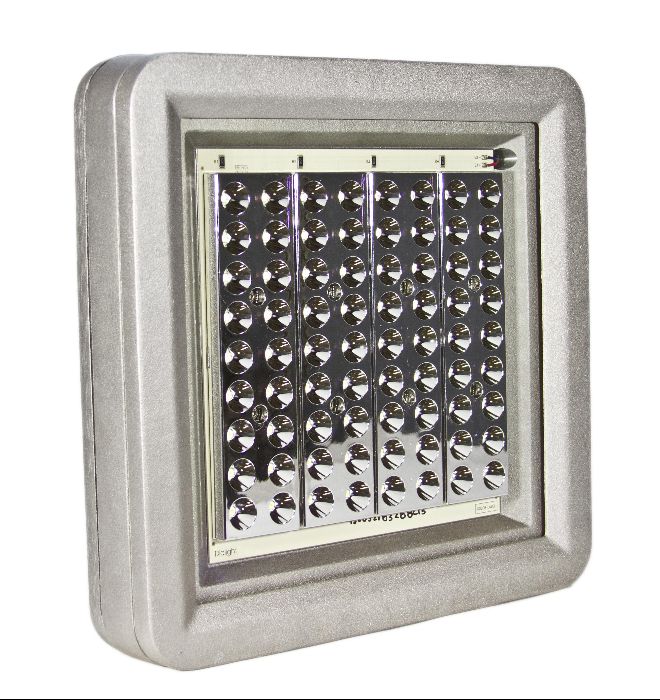

Product image 1: DuroSite LED Flood Light 10500 Lumens, NEMA 4 Distribution, Clear Tempered Glass Lens
Product image 1: DuroSite LED Flood Light 10500 Lumens, NEMA 4 Distribution, Clear Tempered Glass Lens

Product image 1: DuroSite LED Flood Light 10500 Lumens, NEMA 4 Distribution, Clear Tempered Glass Lens



IP
66

IK
07

DuroSite LED Floodlight 10,500 Lumens 112 Watts 347/480V AC Cool White, 75CRI Clear Tempered Glass Lens UL 1598/A CSA C22.2 No. 250 IK07 NEMA 4 (52° Medium) Distribution IP66/67 Scaled IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 108.6 W 10465 lm 96 lm/W 5181 K 75
DuroSite LED Flood Light 10500 Lumens, NEMA 4 Distribution, Clear Tempered Glass Lens

DuroSite LED Flood Light 10500 Lumens, NEMA 4 Distribution, Clear Tempered Glass Lens

Light output 1 (integrated)

LED

Mounting mode

Pendant, Pole top mounted

Shape and measurements

Length: 343 mm

Width: 343 mm

Height: 114 mm

Adjustability

Rotatable, Tiltable

Electric

System power: 108.6 W

Appliance Class: I

Protection

IP: 66

IK: 07

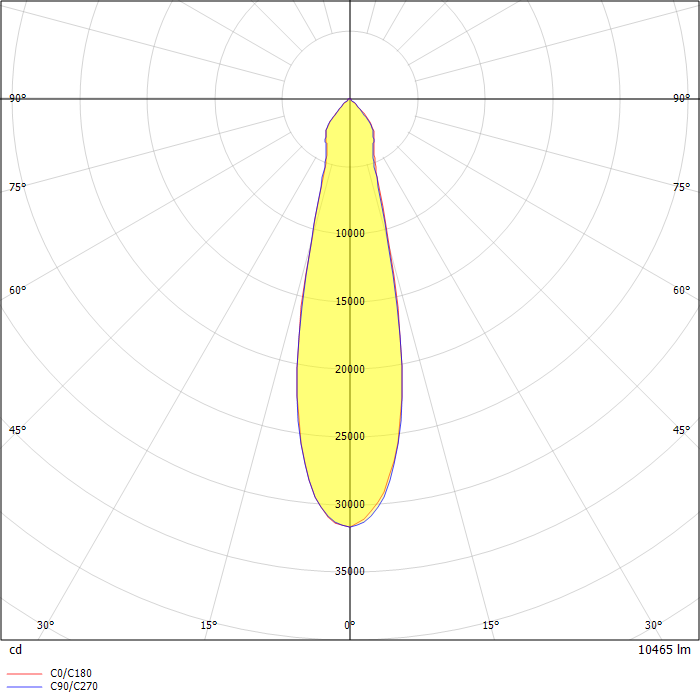

Photometric data

ZIP file

Download file
