Product data sheet

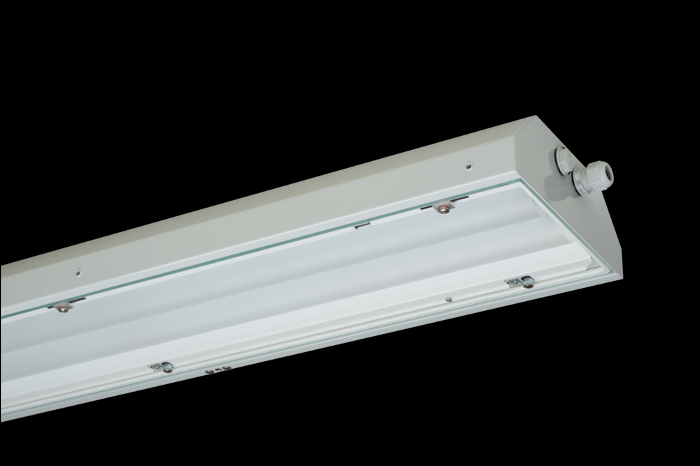

185 LED sheet steel light fitting

185 12L60 DIMD (18501 0006)

Schuch

LED sheet steel light fitting, 43 W, 6190 lm, 144 lm/W, Class I, IP65, symmetrical wide beam, 4000 K, CRI≥ 80, Ta -20 °C/+55 °C, L70>100000 h (@ Ta max), L80>70000 h (@ Ta max), L90>50000 h (@ Ta 25°C), DALI (DIMD), Pane Safety glass clear, Housing Steel, Colour grey, RAL 7035, central locking system, LABS-tested according to VDMA 24364-C2-L. Extremely flat LED steep roof light fitting, ball-proof with sheet steel housing without external clips. Frameless clear tempered safety glass, central locking system with internal hinges. Powder-coated sheet steel reflector with Zhaga LED modules, frosted LED covers and ECG with overload and short-circuit protection. Resource-saving and environmentally friendly thanks to interchangeability of components (no disposable light fitting). Length 1204,00 mm, Width/Diameter 282,00 mm, Height 99,00 mm, Net weight 13,85 kg.

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 43 W 6190 lm 144 lm/W 4000 K 80
185 LED sheet steel light fitting

185 LED sheet steel light fitting

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant, Contact rail, Wall mounted

Shape and measurements

Length: 1204 mm

Width: 282 mm

Height: 99 mm

Adjustability

Fixed

Design

Colour of housing: Silver gray

Electric

System power: 43 W

Appliance Class: I

Protection

IP: 65

IK: 07

Designation labels: CE

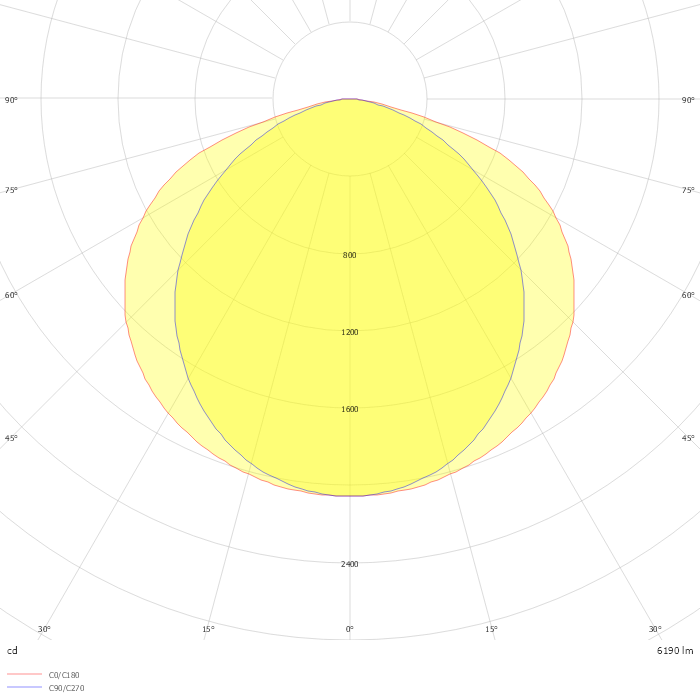

Photometric data

ZIP file
