Product data sheet
Huge 191-260K-10GGEI/830, W
191-260K-10GGEI/830
HALLA

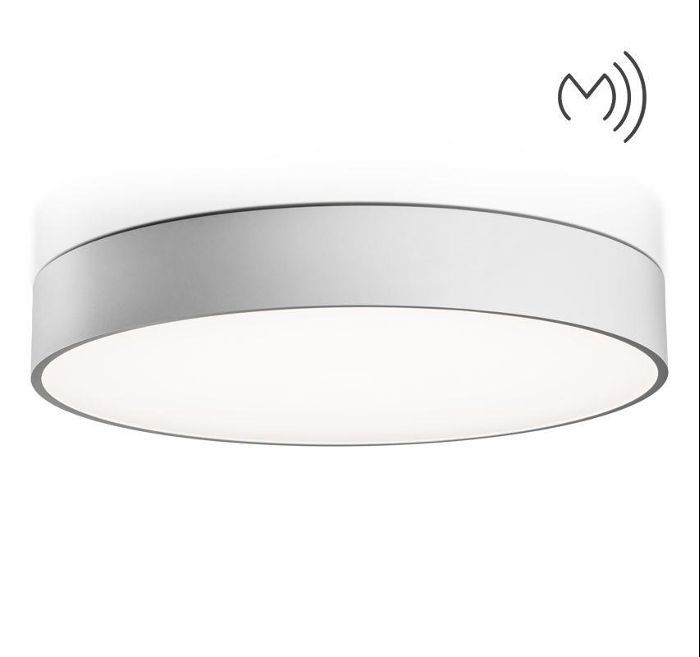

191-260K-10GGEI/830, W Luminaire surface/wall mounted Material of luminaire: Colour of luminaire: Shape of luminaire: Circular Size: 600 x 600 x 87 mm Type of installation: Surface, Wall mounted Distribution: Direct Optics type: Opal diffuser Protection class: I Voltage: 220-240V
| Available equipment | Nominal lamp power | Lamp flux | Luminous efficacy | CCT | CRI |
|---|---|---|---|---|---|
| 1 x LED | 38 W | 5440 lm | 129 lm/W | 3000 K | 80 |
| 1 x LED | 35 W | 5000 lm | 130 lm/W | 3000 K | 80 |
| 1 x LED | 30.5 W | 4500 lm | 132 lm/W | 3000 K | 80 |
| 1 x LED | 27 W | 4000 lm | 133 lm/W | 3000 K | 80 |
| 1 x LED | 23 W | 3500 lm | 134 lm/W | 3000 K | 80 |
| 1 x LED | 20 W | 3000 lm | 135 lm/W | 3000 K | 80 |
| 1 x LED | 17 W | 2500 lm | 137 lm/W | 3000 K | 80 |
Mounting mode
Ceiling mounted, Pendant
Shape and measurements
Height: 87 mm
Diameter: 600 mm
Adjustability
Fixed
Electric
System power: 18.3-42.1 W
Appliance Class: I
Protection
IP: 20

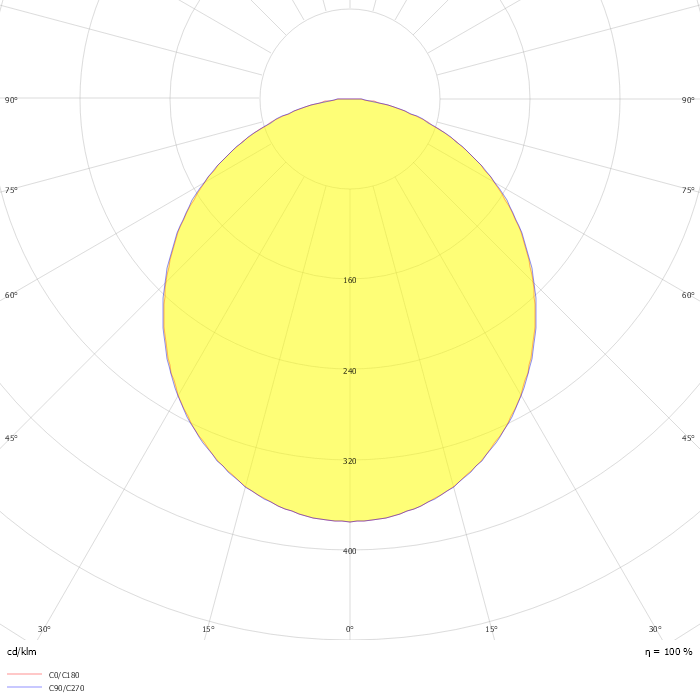

Photometric data
ZIP file
