Product data sheet

SPL14 - SPY 39 FOCUS 927 DIM5

27328 9205

Delta Light

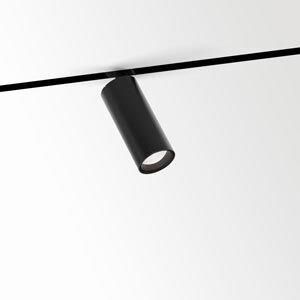

Luminaire, low voltage systems low voltage system mounted (indoor use) from Deltalight, named SPL14 - SPY 39 FOCUS 927 DIM5, available in the colour(s): black, flemish bronze, flemish gold, gold coloured, white. This luminaire can be used with the following 48V lighting system(s): SPLITLINE 14 - PROFILE. This luminaire is equipped with LED array 8,6W / CRI>90 (R9: 60) / 2700K / 974lm with build-in converter to operate on a voltage of 48V-DC. Dimming protocol: DALI. Light distributor: lens 15-45°.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 9 W 974 lm 108 lm/W 2700 K 90
1 x LED 9 W 974 lm 108 lm/W 2700 K 90
SPL14 - SPY 39 FOCUS 927 DIM5

SPL14 - SPY 39 FOCUS 927 DIM5

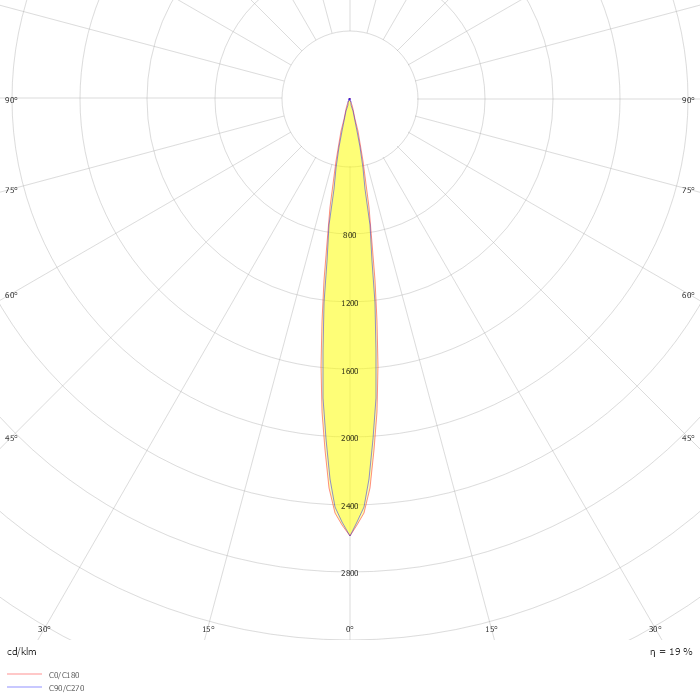

Light output 1

1 x LED

SPL14 - SPY 39 FOCUS 927 DIM5

SPL14 - SPY 39 FOCUS 927 DIM5

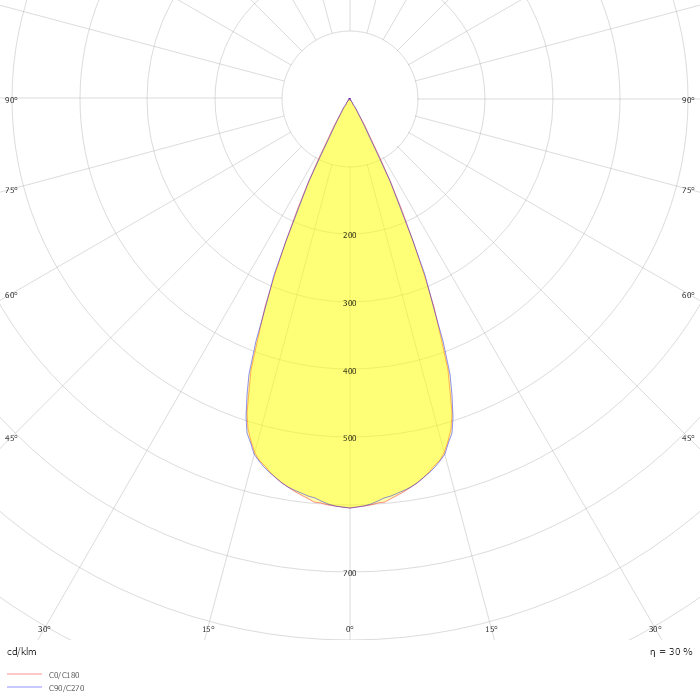

Light output 1

1 x LED

Mounting mode

Ceiling recessed, Contact rail, Wall recessed

Shape and measurements

Length: 7 mm

Width: 160 mm

Height: 1 mm

Electric

System power: 9 W

Appliance Class: II

Protection

IP: 20

Designation labels: CE

Photometric data

ZIP file
