Vigilant LED High Bay 22500 Lumens, Wide Distribution, Diffused Glass Lens

HEx8WN2ExxxxxN

Dialight

Product image 1: Vigilant LED High Bay 22500 Lumens, Wide Distribution, Diffused Glass Lens
Product image 1: Vigilant LED High Bay 22500 Lumens, Wide Distribution, Diffused Glass Lens

Product image 1: Vigilant LED High Bay 22500 Lumens, Wide Distribution, Diffused Glass Lens



IP
66

IK
05

Vigilant LED High Bay 22,500 Lumens 186 Watts 100-277V AC, 120-250V DC Neutral White, 80CRI Diffused Glass Lens UL 1598/A (wet locations) CSA C22.2 No. 250 NEMA 4X CE, ENEC EN 60598-1:2015 EN 60598-2-1 (ed. 1), IEC 60598-2-1 (ed. 8) EN 60598-2-24:2013 EN 62471:2008, EN 62778:2014 EN 62493:2015 IEC60068 Salt Spray Testing - Severity 1 D-Marking to EN 60598 2-24 IK05 Wide Distribution IP66/67 Scaled IES File

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 186 W 22500 lm 121 lm/W 3783 K 80
Vigilant LED High Bay 22500 Lumens, Wide Distribution, Diffused Glass Lens

Vigilant LED High Bay 22500 Lumens, Wide Distribution, Diffused Glass Lens

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 405 mm

Width: 405 mm

Height: 128 mm

Adjustability

Rotatable, Tiltable

Electric

System power: 186 W

Voltage: 240 V AC, 120 V AC, 277 V AC, 110 V AC, 230 V AC

Appliance Class: I

Protection

IP: 66

IK: 05

Other operating numbers

Ambient temperature range: -40...65°C

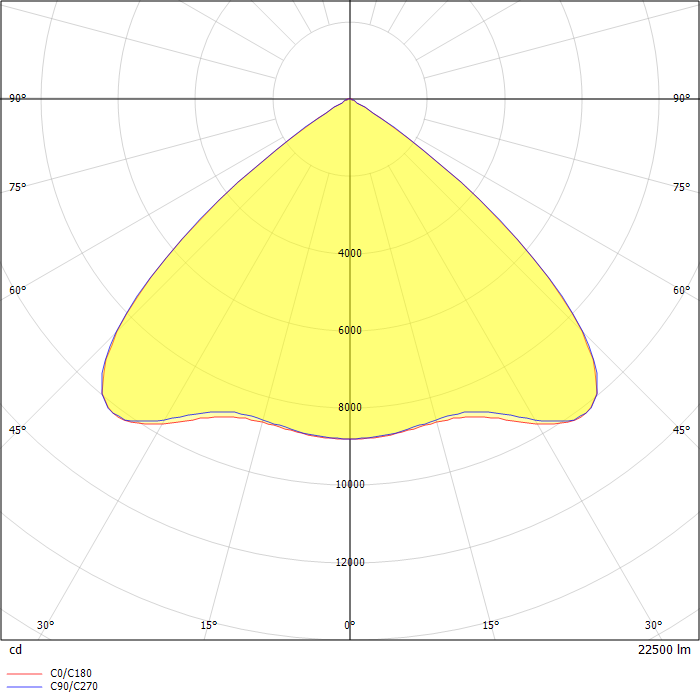

Photometric data

ZIP file

Download file
