Product data sheet

2.5W 3000K 12° NA

L65

MP Lighting

Application Showcases, kitchen cabinets, restaurant millwork, or wine cellars. IP Rating 40 Mounting Recessed mount to cabinet millwork with friction fit spring clip. Comes with 2’(610mm) wire lead. Electrical Power by remote constant current driver. *See website for recommended drivers *Remote emergency driver / inverter options available (consult factory). Power Consumption 3.0 Watt (at 700mA, 2.5 Watt) Light Output 2.5 Watt, 111~127lm Warranty 5 years limited warranty Estimated useful life of LED is 50,000 hours. Material Solid anodized aluminum, RoHS compliant. Weight 0.17lbs (0.079kg) Cutout Size Ø2-1/2” (Ø64mm)

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 2.5 W 112 lm 37 lm/W 3000 K 80
2.5W 3000K 12° NA

2.5W 3000K 12° NA

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 75 mm

Width: 75 mm

Height: 12 mm

Adjustability

Fixed

Electric

System power: 2.5 W

Protection

IP: 40

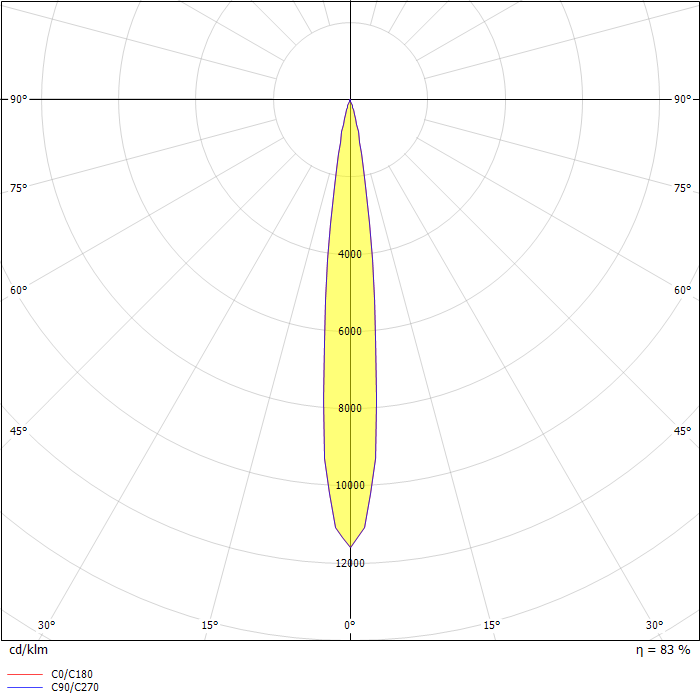

Photometric data

ZIP file
