Product data sheet

LED Bulb LBA 12W 3000K

LBA-12V

MPE

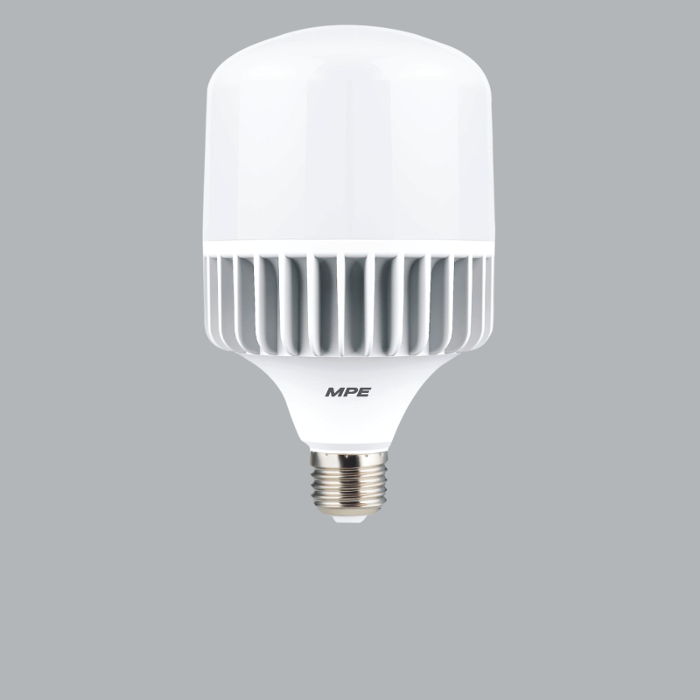

Product image 1: LED Bulb LBA 12W 3000K
Product image 1: LED Bulb LBA 12W 3000K

Product image 1: LED Bulb LBA 12W 3000K



IP
20

- Bulb Led - Size: Ø65 x 125 mm - Base type: E27. - Aluminum alloy body and cooling wings in body. - Used electro static power coating technology to diffuse heat better. - Voltage: 175-265VAC - Power: 12W - Power Factor (PF): >0.5 - Luminance: 1200 lm - Color Temperature (CCT): 2800-3200K - RA >80 High Color Rendering Index - Beam angle: 230◦ - Chip LED: SMD 2835 - Life Time: 30,000 hours - Instant Light: 0s - European Standard CE - RoHS

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 12 W 1200 lm 93 lm/W 3000 K 82
LED Bulb LBA 12W 3000K

LED Bulb LBA 12W 3000K

Light output 1

1 x LED

Mounting mode

Pendant, Ceiling mounted, Ceiling recessed

Shape and measurements

Height: 125 mm

Diameter: 65 mm

Adjustability

Fixed

Electric

System power: 12 W

Protection

IP: 20

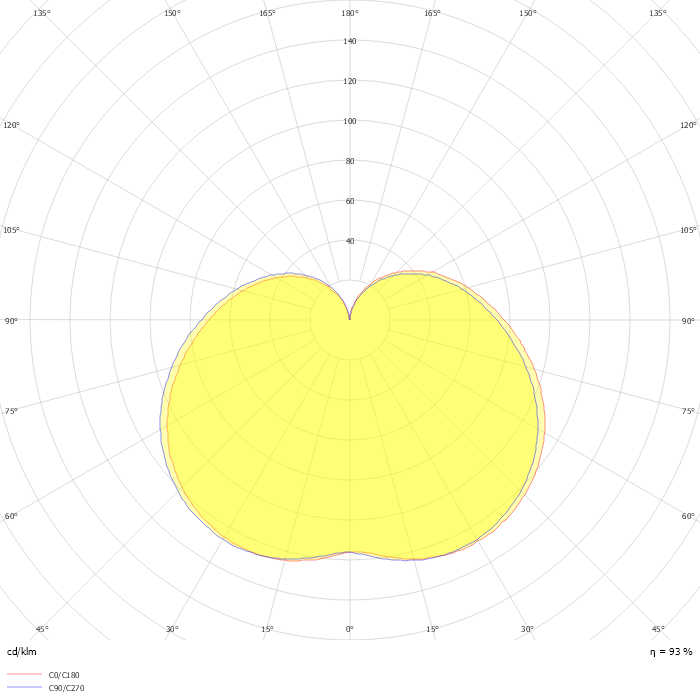

Photometric data

ZIP file

Download file
