Product data sheet

ELN L30 OP

Elisian

Dextra

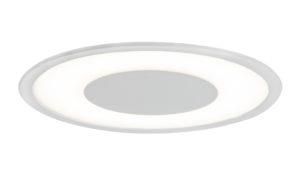

Product image 1: ELN L30 OP
Product image 1: ELN L30 OP

Product image 1: ELN L30 OP



IP
40

Elisian - Ø320mm, IP40 Recessed downlighter with spun aluminium housing, four point steel spring mechanism and opal diffuser. Options: E3 - Emergency control gear (433 lumens output) ST3 - Emergency Selftest AT3 - Emergency Autotest STR - Reacta-Link Wireless Self test S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function) R44 - Daylight regulating and Occupancy Sensor RAS - Reacta Air Wireless Presence & daylight RLS - Reacta-Link Wireless Presence RCS - Reacta-Control Wireless, Presence

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 19.8 W 2316 lm 117 lm/W 4000 K 80
ELN L30 OP

ELN L30 OP

Light output 1 (integrated)

LED

Mounting mode

Ceiling recessed

Shape and measurements

Height: 65 mm

Diameter: 320 mm

Adjustability

Rotatable, Tiltable

Electric

System power: 19.8 W

Ballast: ECG

Protection

IP: 40

Designation labels: CE

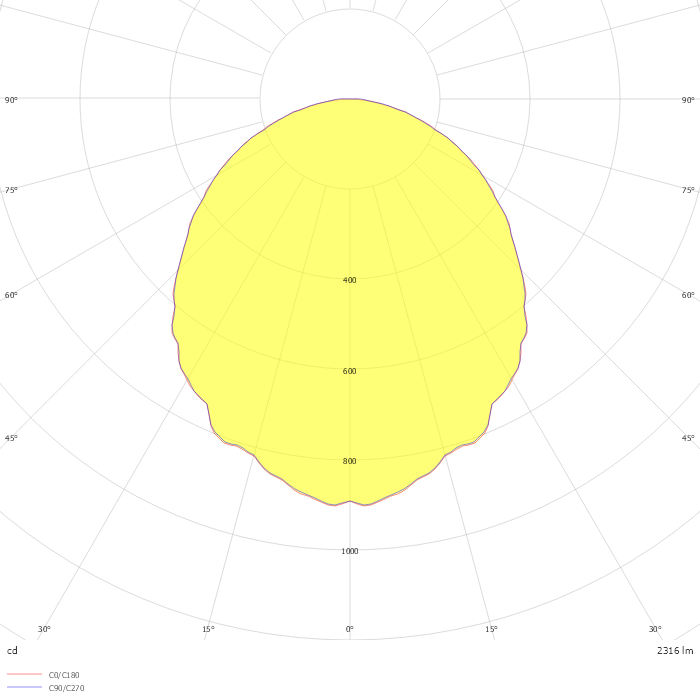

Photometric data
