Product data sheet

HIPAK PRO LED18500-740 HFI-X ASY SPRT

96642950

Thorn Lighting

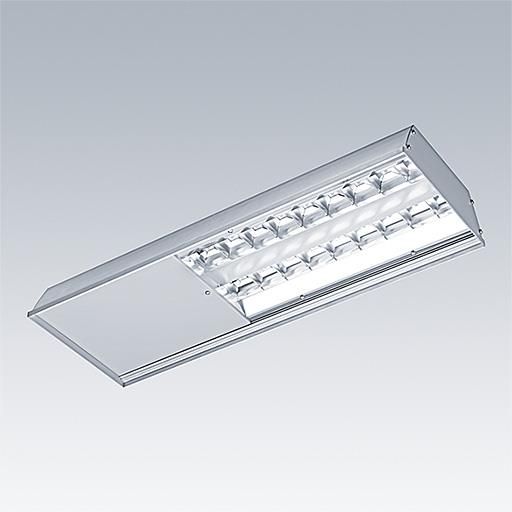

Product image 1: HIPAK PRO LED18500-740 HFI-X ASY SPRT
Product image 1: HIPAK PRO LED18500-740 HFI-X ASY SPRT

Product image 1: HIPAK PRO LED18500-740 HFI-X ASY SPRT



IP
43

IK
08

A LED High Bay luminaire with asymmetrical distribution. Electronic, DALI dimmable control gear. Class I electrical, IP43, IK08. Housing: anodised aluminium extrusion. End caps: painted steel (close to RAL 9006). Reflector: high grade aluminium. Front cover: polycarbonate, 4mm thick. Mounting kits to be ordered separately. Electrical connection via piano key terminal block behind sliding cover. Complete with 4000K LED. Dimensions: 756 x 271 x 92 mm Total power: 152 W Weight: 8.8 kg

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 152 W 18500 lm 122 lm/W 3000 K 80
HIPAK PRO LED18500-740 HFI-X ASY SPRT

HIPAK PRO LED18500-740 HFI-X ASY SPRT

Light output 1 (integrated)

LED

Mounting mode

Pendant

Shape and measurements

Length: 756 mm

Width: 271 mm

Height: 92 mm

Weight: 8.8 kg

Design

Material impression: Aluminum

Colour of housing: Silver gray

Electric

System power: 152 W

Voltage: 220-240 V AC

Controller: DALI

Appliance Class: I

Protection

IP: 43

IK: 08

Designation labels: CE

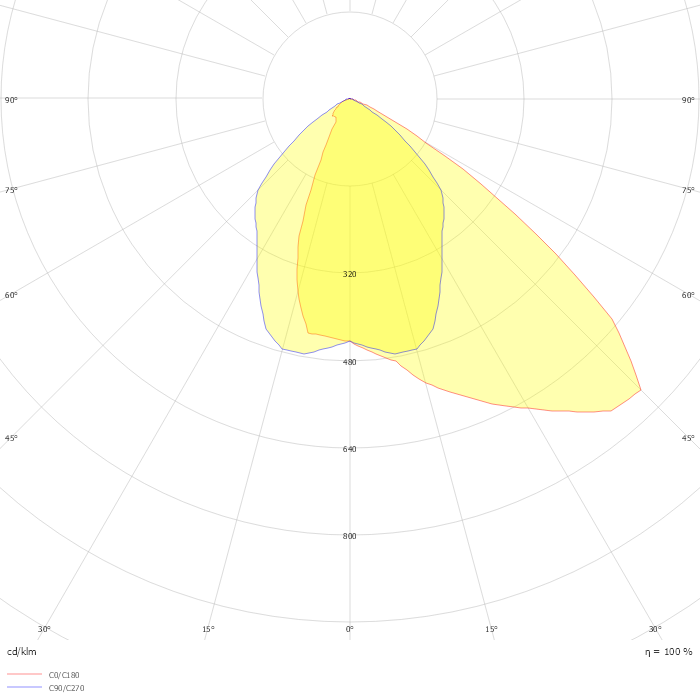

Photometric data

ZIP file

Download file
