Product data sheet

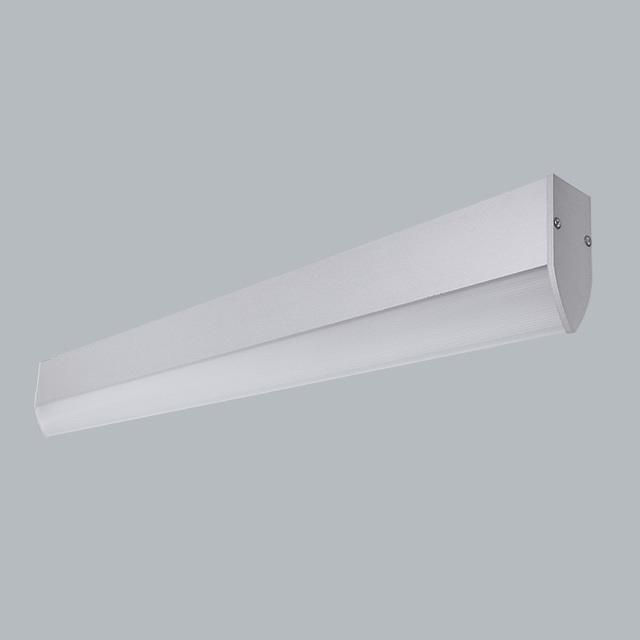

LAMINAR LED 2200 PC EDD 24 IP44 YELLOW MONO / L-1140MM

19.4364.3283.24

LUXIONA

Indoor luminaire. Assembly: surface mounted on ceiling. The body material is aluminum. Colour - anodised aluminum. Luminaire dimensions: 1140 x 47 x 109 mm. Diffuser: PC (opalescent polycarbonate). The efficiency of the optical system is 78,38%. Beam angle: (C0-C180) / (C90-C270) - 141,4° / 86,8°. Light source type: LED. Colour temperature - yellow colour (dominant wavelength λp=592 nm). Lifetime of LED sources: 60000 h L80/B10. Luminaire luminous flux: 1724 lm. Power of luminaire: 58 W. Luminaire's light efficiency: 29,7 lm/W. Driver: DIM DALI (EDD). Voltage 220..240 V, 50..60 Hz. Power factor cosφ: >0,95. Circuit load capacity: 15 (B10), 24 (B16), 24(C10), 40 (C16). Operating temperature range: 5 ÷ 30° C. Protection degree: IP44. Protection against electric shock: I. The luminaire can be made in CLO (Constant Lumen Output) version.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
2 x LED 29 W 1100 lm 38 lm/W 3000 K 70
LAMINAR LED 2200 PC EDD 24 IP44 YELLOW MONO / L-1140MM

LAMINAR LED 2200 PC EDD 24 IP44 YELLOW MONO / L-1140MM

Light output 1

2 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 1140 mm

Width: 47 mm

Height: 109 mm

Adjustability

Fixed

Design

Colour of housing: Silver gray

Electric

System power: 58 W

Controller: DALI

Appliance Class: I

Protection

IP: 44

Other operating numbers

Ambient temperature range: 5...30°C

Photometric data

ZIP file
