Product data sheet

6401/522-8508-15-131

239552

Stahl

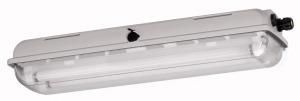

Product image 1: 6401/522-8508-15-131
Product image 1: 6401/522-8508-15-131

Product image 1: 6401/522-8508-15-131



IP
66

Light Fitting for Fluorescent Lamps EXLUX 6401 2x18W Explosion protection: Gas: Ex nA IIC T4 Gc Ex nA d IIC T4 Gc Dust: Ex tb IIIC T80 °C Db Ex tc IIIC T80 °C Dc Certificates Gas: PTB 14 ATEX 2016 Gas and Dust: PTB 14 ATEX 2017 Rated voltage: AC: 220 (- 10%) ... 240 (+ 10%) V, 50 / 60 Hz, DC: 198 ... 254 V/ 1-lamp: 176 ... 264 V Ambient temperature: -30 ... +50 °C Material: Enclosure: glass fibre reinforced polyester resin Cover: Polycarbonate Troughwiring: 5 conducters

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
2 x Fluorescent lamp tubular T5 18 W 1350 lm 59 lm/W 4000 K 85
2 x Fluorescent lamp tubular T5 18 W 1350 lm 59 lm/W 3000 K 85
6401/522-8508-15-131

6401/522-8508-15-131

Light output 1

2 x Fluorescent lamp tubular T5

6401/522-8508-15-131

6401/522-8508-15-131

Light output 1

2 x Fluorescent lamp tubular T5

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 698 mm

Width: 184 mm

Height: 128 mm

Adjustability

Fixed

Electric

System power: 38 W

Voltage: 230 V

Ballast: ECG

Integrated Switch: In housing

Suitable for feed-through wiring

Protection

IP: 66

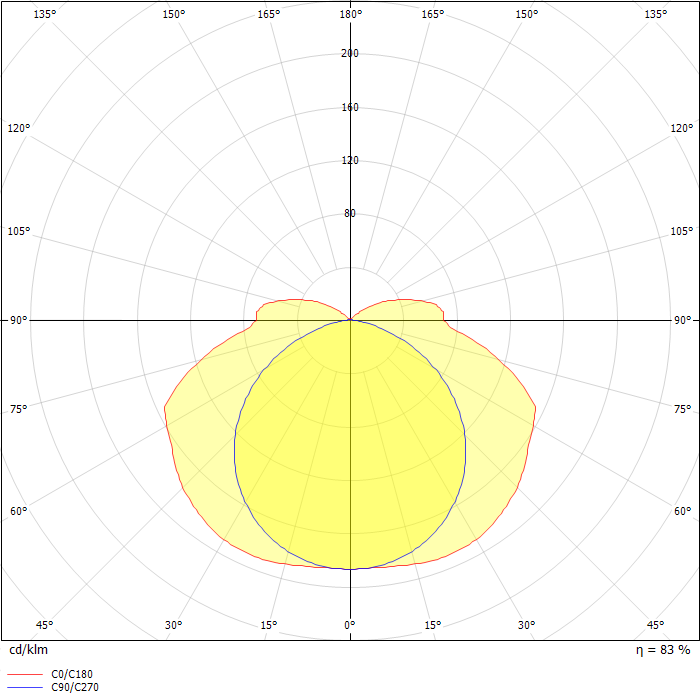

Photometric data

ZIP file

Download file
