Product data sheet

FLC210 [GP] IP66:LED-FT-18W/4K - max aperture angle

139-2499

we-ef

Profile Projector [FP] for framing applications, polygon shape. Spherical/triple flat convex lens system. Profile Projector [GP] for projection of gobos on a surface. Spherical/triple flat convex lens system. Gobo motif on request, to be ordered separately. Profile Projector [ZP] for zoom spot. Spherical/triple flat convex lens system. IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable gland. Second gland for through wiring available as variant. Glass LED lens array. Factory installed LED circuit board. LED board can be removed for upgrading. Electronic control gear (ECG) in separate driver box.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 18 W 2530 lm 87 lm/W 4000 K 80
FLC210 [GP] IP66:LED-FT-18W/4K - max aperture angle

FLC210 [GP] IP66:LED-FT-18W/4K - max aperture angle

Light output 1

1 x LED

Mounting mode

Standing / Bollard

Shape and measurements

Height: 30 mm

Diameter: 30 mm

Weight: 1 kg

Electric

System power: 20 W

Appliance Class: I

Protection

IP: 66

IK: 07

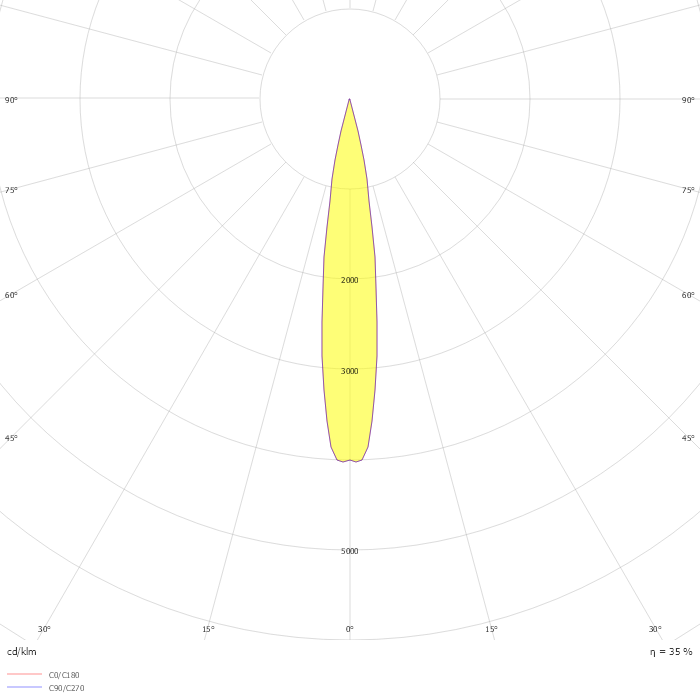

Photometric data

ZIP file
