Product data sheet

SRN L22 PC

Siren

Dextra

Product image 1: SRN L22 PC
Product image 1: SRN L22 PC

Product image 1: SRN L22 PC



IP
65

IK
06

Siren - 600mm, IP65, IK07 Surface mounted moisture resistant luminaire. Polycarbonate body and diffuser with stainless steel diffuser retaining clips. Options: S - Switch Dimming D - Digital Dimming (DSI) A - Digital Addressable Lighting Interface (DALI) C - Bi-Level Dimming (Corridor Function) TRS - Tamper Resistant Screws TRS INSTALL KIT - Tamper Resistant Compatible Screwdriver Heads

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
LED 15.8 W 1903 lm 120 lm/W 4000 K 80
SRN L22 PC

SRN L22 PC

Light output 1 (integrated)

LED

Mounting mode

Ceiling mounted, Pendant

Shape and measurements

Length: 600 mm

Width: 100 mm

Height: 75 mm

Adjustability

Fixed

Electric

System power: 15.8 W

Ballast: ECG

Appliance Class: I

Protection

IP: 65

IK: 06

Designation labels: CE

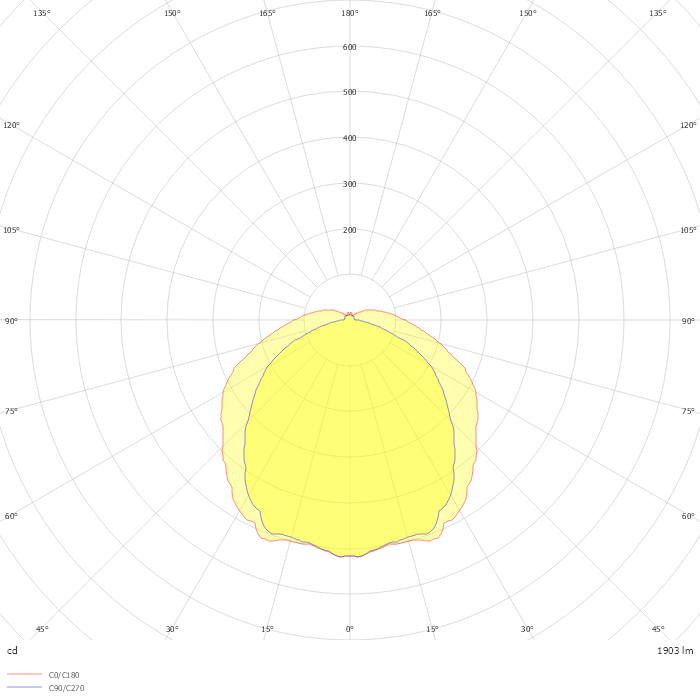

Photometric data

ZIP file

Download file
