Product data sheet

Sports lighting

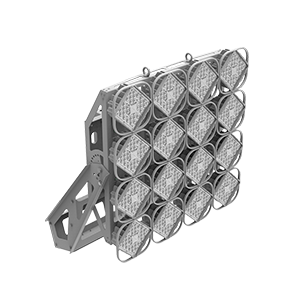

V1-P1-703X5-04L06-65K1240 AirQub Sport 1120 W 1 120W 4000K transparent 90°

VARTON

High-power floodlight with a wide range of wattage and optics. Best lumens/mass/size ratio in its class of solutions. Material: Cast aluminum radiator, steel body parts, acrylic optic. Installation: Surface-mounted using an adjustable bracket. The mounting bracket has an angle of inclination 30° to the horizontal for comfortable aiming of the spotlight.Angle of rotation: 30° to 165° in 5° increment. Application: Outdoor areas. Industrial facilities. Sports lighting. Input voltage (AC, 50Hz), V: 180...528 AC frequency, Hz: 50 Input voltage (DC), V: 255...500 Climatic modification and category of placement: УХЛ1 Flicker, %: 1 Ingress protection (IP): IP67 Protection class: I Impact resistance: IK01 Power factor: 0,95 https://www.varton.ru/products/sportivnoe-osveshchenie/airqub-sport/airqub-sport-1120-vt/svetodiodnyy-prozhektor-varton-airqub-sport-1120-vt-4000-k-90/

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 1120 W 158500 lm 142 lm/W 4000 K 80
Sports lighting

Sports lighting

Light output 1

1 x LED

Mounting mode

Ceiling mounted

Shape and measurements

Length: 676 mm

Width: 580 mm

Height: 721 mm

Adjustability

Fixed

Electric

System power: 1120 W

Protection

IP: 67

IK: 01

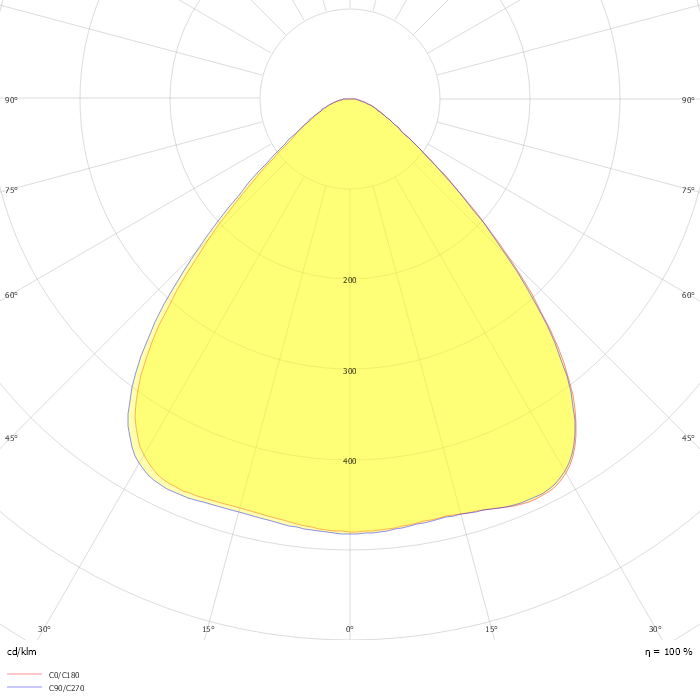

Photometric data

ZIP file
