Product data sheet

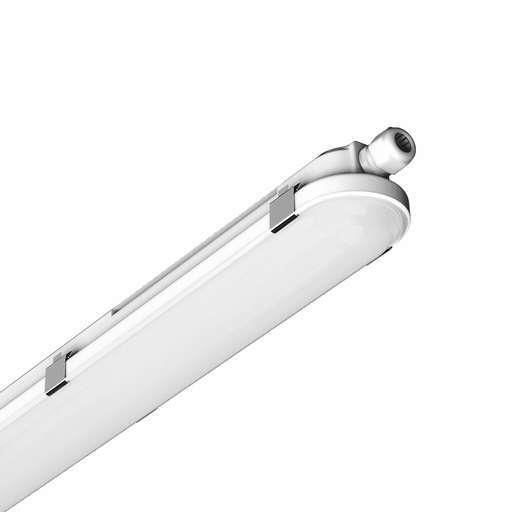

maran-DV/1500 LED - Diffusor opal | Opal diffuser

6200-3900 840 6217lm IP65 ETM hg (50135404115)

Regiolux

Luminaire with a higher protection rating IP65; Ceiling-wall and pendant mounting; Housing made of polycarbonate, captive diffuser fastening clips made of stainless steel, cable entries with cable gland M20 in accordance with the protection rating on the end faces, suspension wires to make installation easier; Housing colour light grey; Light distribution direct distribution by means of Opal diffuser of Polycarbonate, deep-drawn polycarbonate diffuser with opal-prismatic, smooth surface. The light source and driver are removable in accordance with the EU 2019/2020 ecodesign requirements and can be replaced in the factory. Multi-lumen driver with 4 adjustable light outputs integrated. Electrical connection via 5-pole connection terminal with plug-in contacts. Feed-through wiring, 5-pole;. 2 variable fastening clips of stainless steel and suspension bracket for luminaire mounting also included in the scope of delivery. Swivel mounting bracket SBB to be ordered separately. Chamfered cable entries for boring on the top of the luminaire; Dimensions (LxWxH): 1540mm x 85mm x 78mm Cable entry KE: Further cable entries can be broken out at the end face and on the rear Placement: LED, Colour rendering/Light colour CRI ≥ 80 / 4000K Colour tolerance: 4SDCM Photobiological safety (Luminaire): RG1 LED service life: 50000h L70/B10 (Tq 35°C), 50000h L80/B50 (Tq 25°C) Nominal luminous flux/switching steps: 6200lm/43W, 5400lm/37W, 4800lm/32W, 3900lm/26W (standard setting 6200lm) Luminaire luminous efficiency: 153lm/W-146lm/W Controller: Electronic multi-lumen driver, 4-steps (1 pcs.) Wiring: 5x1.5mm², throughwired, plug-in contact for 5x1.5qmm System output: 43W-26W Energy efficiency class/light source: C Mains voltage: 230V Mains frequency: 50Hz Impact resistance (IK rating): IK08 (-20°C bis 35°C) Ambient temperatur: ta -20°C to 35°C UGR lat./long.: 24.6 / 23.8 (43W) Certification mark: IP65, Protection class I, F, D, HACCP DIN10500/Food/IFS/BRC, Indoor, CE Warranty period: 5 years Regiolux GmbH Type: maran-DV/1500 LED 6200-3900 840 ETM hg Article number: 50135404115 Product deep link: https://www.regiolux.de/en/article/50135404115 General warranty conditions: www.regiolux.de/en/Service/Warranty

Lamp type Nominal lamp power Total flux Luminous efficacy CCT CRI
42.6 W 6217 lm 146 lm/W 4000 K 80
maran-DV/1500 LED - Diffusor opal | Opal diffuser

maran-DV/1500 LED - Diffusor opal | Opal diffuser

Light output 1 (integrated)

Mounting mode

Ceiling mounted, Contact rail

Shape and measurements

Length: 1540 mm

Width: 85 mm

Height: 78 mm

Design

Colour of housing: Anthracite / graphite

Electric

System power: 42.6 W

Appliance Class: 0

Protection

IP: 65

IK: 08

Designation labels: CE

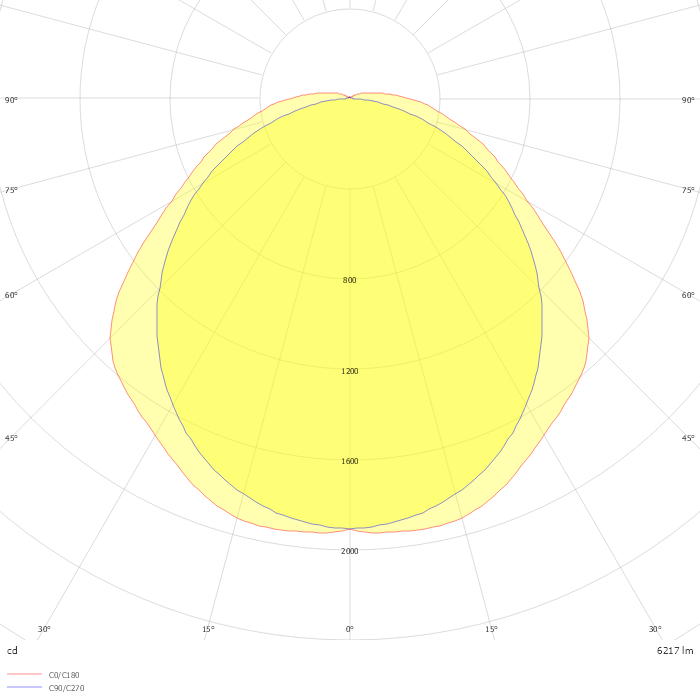

Photometric data

ZIP file
