Product data sheet

Play Deco Surface

AG32-13W9M2OUWN

LedsC4

LedsC4 Play Deco Surface AG32-13W9M2OUWN Downlight For downlighting. Structure material: Aluminium. Structure finish: Black/Black. Diffuser material: Methacrylate. Diffuser finish: Transparent. Warranty: 5 Years. Product net weight (Kg): 0.66 Product width or diameter (mm): 72,5 Product height (mm): 200 Class 2. Glow wire test: 850. IP: IP43. LED. No. of lampholders or LEDs: 1. LED brand: CREE. Driver brand: VOSSLOH-SCHWABE. Maximum power of light source: 11.9W. Colour temperature: 3000K. Colour rendering index: 90. MacAdam Steps: 2. Hours of life: 50.000h L80B20. UGR: 14.8. Photobiological risk: RG1. % de Flickering: <5%. Real flux (lm): 1373. Real lm/W: 96. Voltage / frequency range: 100-240/50-60Hz. Voltage: 36. Equipment included: Yes. Total power: 14.3. Power factor: 0.88. Dimmable equipment included: ON-OFF.

Available equipment Nominal lamp power Lamp flux Luminous efficacy CCT CRI
1 x LED 14.4 W 1373 lm 95 lm/W 3000 K 90
Play Deco Surface

Play Deco Surface

Light output 1

1 x LED

Mounting mode

Ceiling recessed

Shape and measurements

Length: 73 mm

Width: 72 mm

Height: 200 mm

Adjustability

Fixed

Electric

System power: 14.4 W

Appliance Class: II

Protection

IP: 43

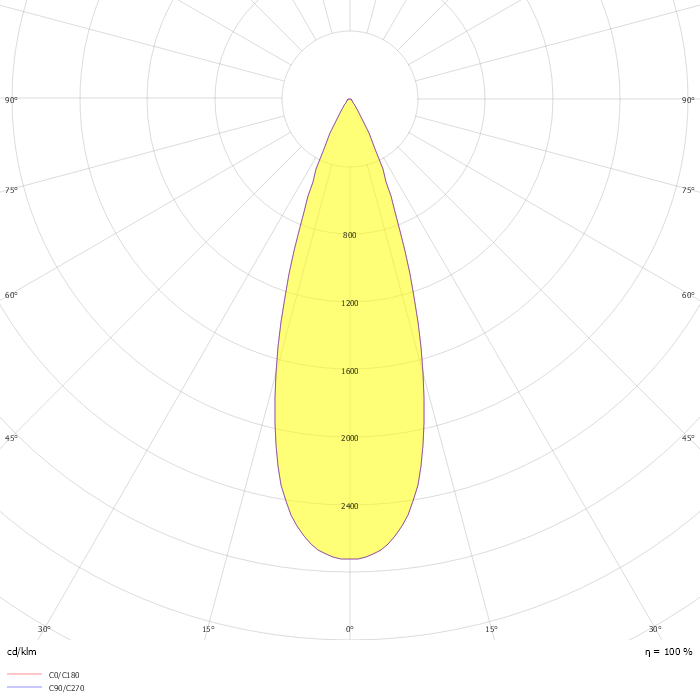

Photometric data

ZIP file
